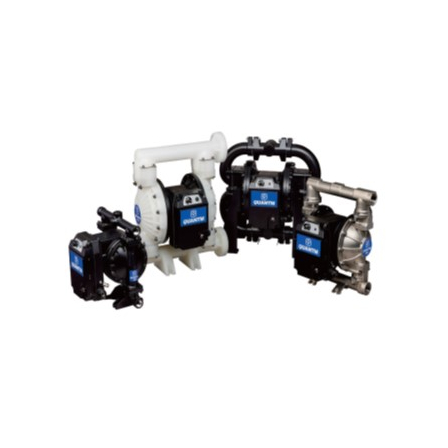

Electric Diaphragm Pump "QUANTM"
Replacing air-driven pumps can reduce electricity costs and CO2 emissions by up to 80%!
The "QUANTM" is an electric diaphragm pump that can replace existing air-driven pumps. It does not require a compressor or external inverter, reducing energy costs by up to 80%. It has also obtained explosion-proof certification, making it suitable for various work environments. The noise level is reduced by up to 90%, supporting a comfortable working environment with quiet operation. Please feel free to contact us when you need assistance. 【Main Features】 ■ No compressor required ■ Reduces energy costs and CO2 emissions by up to 80% ■ Quiet operation (Air-driven max 110dB, QUANTM max 77dB) ■ Explosion-proof certification obtained (non-explosion-proof, explosion-proof C1D1, ATEX, IECEx, JPEx) ■ No external inverter required ■ Can replace existing air-driven pumps *For more details, please download the PDF or feel free to contact us.
basic information
【Main Specifications】 ■1-inch model: Maximum discharge capacity 115L/min | Maximum discharge pressure 0.69MPa ■1.5-inch model: Maximum discharge capacity 300L/min | Maximum discharge pressure 0.69MPa ■2-inch model: Maximum discharge capacity 454L/min | Maximum discharge pressure 0.41MPa ■Connection diameter: 1" to 2" (NPT & BSPT) ■Power supply: 100-240V / Three-phase compatible ■Materials in contact with fluid: Aluminum, cast iron, stainless steel, polypropylene, conductive polypropylene, PVDF (Kynar) *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
