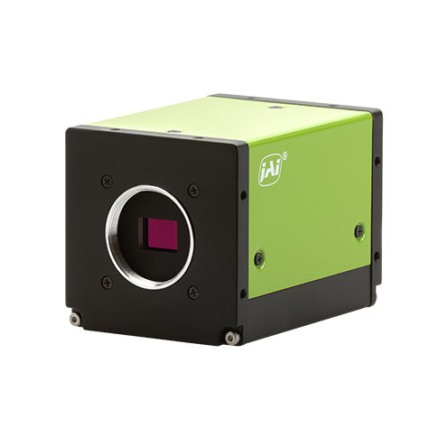

[Made in Japan] MCL 3CMOS Camera | AP-5100T-MCL
Overwhelming color reproduction with a 3CMOS prism without color interpolation. MCL compatible. Made in Japan with a reliable 3-year warranty.
The "AP-5100T-MCL" is an industrial 3CMOS color camera that spectrally separates R/G/B using an optical prism and individually captures them with three CMOS sensors. It completely eliminates color bleeding and false colors characteristic of the Bayer method, achieving extremely high precision in color reproduction and spatial resolution. With a high-speed Mini Camera Link (MCL) interface, it enables high-speed imaging at up to 55 fps with 5.1 megapixels. Furthermore, it ensures high quality and stable supply unique to "Made in Japan," contributing to long-term TCO reduction. 【Features】 ■ 3CMOS prism spectrometry: True color images with no color interpolation, zero false colors, and no color bleeding ■ Made in Japan with a reliable 3-year warranty: Promises stable long-term supply and quality assurance ■ 5.1 megapixels (2464×2056) with high-speed imaging up to 55 fps ■ MCL interface: Supports high-speed transfer of large volume data ■ Equipped with Sony IMX548 (Pregius S) (pixel size 2.74µm) ■ Flexible optimization of frame rates through ROI (Region of Interest) readout *For more details, please download the PDF document or feel free to contact us.
basic information
■Main Specifications ・Resolution: 5.1MP (2464 x 2056 px) ・Frame Rate: 55 fps ・Interface: Mini Camera Link ・Sensor: 3CMOS RGB (IMX548 (Pregius S)) ・Pixel Size: 2.74 x 2.74 µm
Price information
For more details, please feel free to contact us.
Delivery Time
Model number/Brand name
Apex Series
Applications/Examples of results
■ Electronic Devices and Semiconductor Inspection Field - Composite appearance inspection of printed circuit boards (PCBs) and electronic components (simultaneous judgment of solder joints, printing, and presence of components) - Detection of fine defects in semiconductors and wafers (high-efficiency inspection using multiple illuminations and wavelengths) - Quality inspection of displays (high-precision detection of subpixel brightness, uniformity, and defective pixels) ■ FA and Manufacturing Quality Control Field - Accurate measurement and color inspection of automotive parts' paint colors and LED emission colors - High-precision inline quality inspection of printed materials (ink separation analysis, accurate sampling of color patches) ■ Food and Pharmaceutical Quality Control Field - Color difference discrimination, coating defects, and foreign matter contamination inspection of pharmaceuticals (capsules, multilayer tablets, etc.) - Ripeness determination and identification of fine defect colors in food (fruits, vegetables, meat, etc.)
catalog（1）
Download All Catalogs
Recommended products
Distributors
JAI is a manufacturer of industrial imaging equipment that supplies high-performance CMOS/CCD cameras across a wide range of fields, including machine vision (inspection and measurement of various industrial products), medical, science, and ITS (intelligent transportation systems). We offer a wide range of products, primarily area scan and line scan cameras, with resolutions ranging from VGA to 20 million pixels. Our unique feature is that we provide not only single-chip cameras but also innovative multi-chip cameras developed based on our proprietary prism technology.
