[Made in Japan] Color High-Resolution Camera | GOX-12409C-PGE
12.2MP high-resolution color camera. Ideal for appearance and print inspection. Made in Japan with a reliable 3-year warranty.

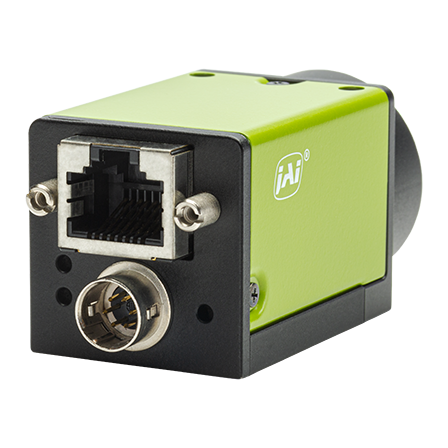

JAI's "GOX-12409C-PGE" is a 12.2MP high-resolution color camera from the "Go-X series." It supports high-definition appearance inspection, print inspection, and electronic component inspection, assisting in the acceleration of production lines with high-speed capture at 9 fps. It is compatible with GigE connections. As a "Made in Japan" camera that completes everything from development to manufacturing domestically, it boasts overwhelming superiority in both quality and supply stability compared to overseas products. Additionally, it contributes to reducing TCO during long-term operation. 【Features】 ■ 12.2MP high-resolution color — Covers a wide area with high detail using a single unit ■ 9 fps support — Compatible with high-speed lines ■ Equipped with GigE interface (PoE compatible) ■ Sensor pixel size 1.85 x 1.85 µm (IMX226 (Rolling)) ■ ROI setting and binning support ■ Reliable 3-year warranty for Japanese-made products — Stable quality and long-term support *For more details, please download the PDF document or feel free to contact us.
basic information
■ Main Specifications ・Resolution: 12.2MP (4016 x 3036 px) ・Frame Rate: 9 fps ・Interface: GigE Vision 1-Cable (PoE) ・Sensor: 1CMOS (IMX226 (Rolling)) ・Pixel Size: 1.85 x 1.85 µm
Price range
Delivery Time
Model number/Brand name
Go-X Series
Applications/Examples of results
■ Electronics and Semiconductor Inspection Field - Appearance inspection of various electronic components, including inspection of printed circuit boards (PCBs) and sorting of small parts. - Defect inspection and dimensional measurement at each stage of the semiconductor manufacturing process (early elimination of defective products). ■ FA, Robotics, and Dimensional Measurement Field - High-precision measurement of geometric dimensions in manufacturing processes (measurement of distance, radius, diameter, etc.). - Integration into the robotics field (providing compact, industrial-grade image quality for vision-guided robotic arms and autonomous vehicles). ■ Medical, Pharmaceutical, and Life Sciences Field - Stop-and-go inspection of pharmaceutical packaging, barcode reading for traceability, and label quality inspection. - Microscopic observation and life sciences (imaging of tissue sections using whole slide pathology scanners, classification and counting of cells, applications in ophthalmology and brightfield microscopy).
Related Videos
Recommended products
Distributors
JAI is a manufacturer of industrial imaging equipment that supplies high-performance CMOS/CCD cameras across a wide range of fields, including machine vision (inspection and measurement of various industrial products), medical, science, and ITS (intelligent transportation systems). We offer a wide range of products, primarily area scan and line scan cameras, with resolutions ranging from VGA to 20 million pixels. Our unique feature is that we provide not only single-chip cameras but also innovative multi-chip cameras developed based on our proprietary prism technology.
