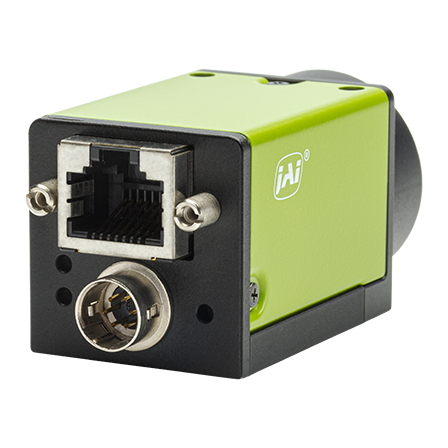

[Made in Japan] Monochrome High-Resolution Camera | GOX-12409M-PGE
12.2MP high-resolution monochrome camera. Ideal for high-definition FA inspection. Made in Japan with a reliable 3-year warranty.
JAI's "GOX-12409M-PGE" is a 12.2MP high-resolution monochrome camera from the "Go-X series." It is versatile, supporting a wide range of applications from transmission and foreign object inspection utilizing NIR sensitivity to high-definition appearance inspection of precision parts. It features GigE connectivity and supports 9 fps. As a "Made in Japan" camera, it boasts overwhelming advantages in both quality and supply stability compared to overseas products, and it also contributes to TCO reduction during long-term operation. 【Features】 ■ 12.2MP high-resolution monochrome — Suitable for high-precision defect and dimension inspections ■ NIR sensitivity — Enables visualization of transmission and internal structures ■ Equipped with a GigE interface, supports 9 fps ■ Sensor pixel size 1.85 x 1.85 µm (IMX226 (Rolling)) ■ Flexible settings compatible with inspection lines through ROI and binning support ■ Reliable 3-year warranty as a Japanese product — Supports long-term stable operation *For more details, please download the PDF document or feel free to contact us.
basic information
■ Main Specifications ・Resolution: 12.2MP (4016 x 3036 px) ・Frame Rate: 9 fps ・Interface: GigE Vision 1-Cable (PoE) ・Sensor: 1CMOS (IMX226 (Rolling)) ・Pixel Size: 1.85 x 1.85 µm
Price range
Delivery Time
Model number/Brand name
Go-X Series
Applications/Examples of results
■ Electronics and Semiconductor Inspection Field - Appearance inspection of various electronic components, including inspection of printed circuit boards (PCBs) and sorting of small parts. - Defect inspection and dimensional measurement at each stage of the semiconductor manufacturing process (early elimination of defective products). ■ FA, Robotics, and Dimensional Measurement Field - High-precision measurement of geometric dimensions in manufacturing processes (measuring distance, radius, diameter, etc.). - Integration into the robotics field (providing compact, industrial-grade image quality for applications such as vision-guided robotic arms and autonomous vehicles). ■ Medical, Pharmaceutical, and Life Sciences Field - Stop-and-go inspection of pharmaceutical packaging, barcode reading for traceability, and label quality inspection. - Microscopic observation and life sciences (imaging of tissue sections using whole slide pathology scanners, classification and counting of cells, ophthalmic and brightfield microscopy applications).
Related Videos
Recommended products
Distributors
JAI is a manufacturer of industrial imaging equipment that supplies high-performance CMOS/CCD cameras across a wide range of fields, including machine vision (inspection and measurement of various industrial products), medical, science, and ITS (intelligent transportation systems). We offer a wide range of products, primarily area scan and line scan cameras, with resolutions ranging from VGA to 20 million pixels. Our unique feature is that we provide not only single-chip cameras but also innovative multi-chip cameras developed based on our proprietary prism technology.
