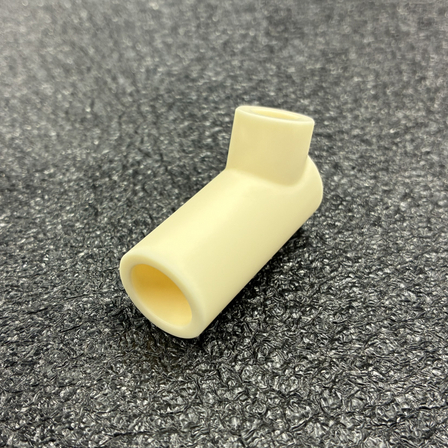

Integrated ceramic joint
Excellent resistance to corrosion and wear, seamless ceramic joints eliminate metal contamination.
It has become possible to integrally mold elbow shapes and branching shapes that were difficult with conventional ceramics. The integral structure ensures no leakage, making it ideal for applications requiring wear resistance and corrosion resistance as flow paths for gases, liquids, chemicals, and powders. Since it is made of a single ceramic material, there is also no concern about metal contamination.
basic information
【 Material 】 Silicon carbide, silicon nitride, alumina, zirconia 【 Outline dimensions [mm] 】 Outer diameter: φ5 to φ50, inner diameter: φ5 to φ45 *Minimum wall thickness 2 Total length: 5 to 200 Please consult us regarding end connection methods, shapes, sizes beyond the outlined dimensions, dimensional tolerances, etc.
Price range
Delivery Time
Applications/Examples of results
Semiconductor manufacturing equipment, chemical plants, powder processing
catalog（10）
Download All Catalogs
Recommended products
Distributors
As a member of JGC Group, JFC challenges the possibilities of the material of fine ceramics with our own technologies. We actively engage in fundamental and applied research on ceramics, product application development, as well as manufacturing and sales. We respond to the diverse needs of various advanced industries with our unique technologies and products, including high-frequency ceramic substrates and circuit components, ceramic parts for industrial machinery, and the prototyping and development of metal-ceramic composite materials (MMC).
