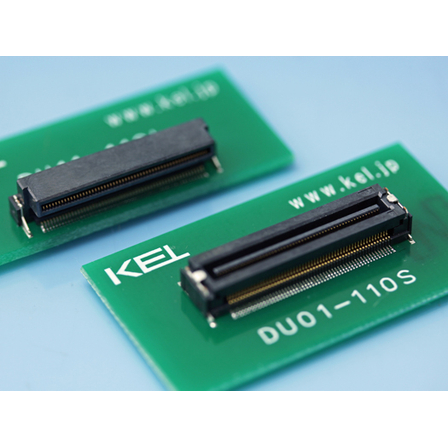

0.4mm pitch floating connector for medical devices
0.4mm pitch floating connector that achieves both miniaturization and high reliability.
In the field of medical devices, high image quality and advanced functionality require high-density mounting inside the equipment and stable connection reliability. Particularly in X-ray cameras, it is essential to accommodate many electronic components and circuit boards within a limited space while ensuring stable signal transmission that absorbs positional misalignment during assembly. The DU series features a 0.4mm pitch floating connector. It has a ±0.4mm range of motion in the XY direction, enabling reliable mating while absorbing positional misalignment between circuit boards. Additionally, it supports compact and high-density mounting, contributing to space-saving in medical devices. It has a proven track record in X-ray camera applications and supports the high connection reliability required in medical devices. 【Usage Scenarios】 - X-ray cameras - Medical imaging equipment - Interconnection between circuit boards inside medical devices - Medical devices requiring miniaturization 【Benefits of Implementation】 - Contributes to the miniaturization of equipment - Reduces assembly effort - Maintains diagnostic accuracy through improved connection reliability - Suppresses foreign object intrusion, achieving long-term stable operation
basic information
**Features** - Achieves the industry's smallest contact pitch of 0.4mm - Absorbs assembly tolerance deviations with ±0.4mm movement in the XY direction - Arc-shaped contact areas reduce the risk of foreign object entrapment - No exposure of the receptacle's bottom terminal, preventing foreign object intrusion and allowing for patterned wiring - Dust prevention measures include automatic mounting with Kapton tape and sealing of the mating area **Our Strengths** Since its founding, KEL has been a dedicated manufacturer of industrial connectors, clarifying the needs to be addressed and the demands of the next generation through dialogue with customers, and consistently providing products that are one step ahead. For the future opened by electronics, we deliver cutting-edge technology proposals and high-performance products in the field of connection technology. KEL responds to rapidly advancing technology and market environments with creativity and actively engages in custom solutions, so please feel free to consult with us.
Price range
Delivery Time
Model number/Brand name
DU Series
Applications/Examples of results
ー
