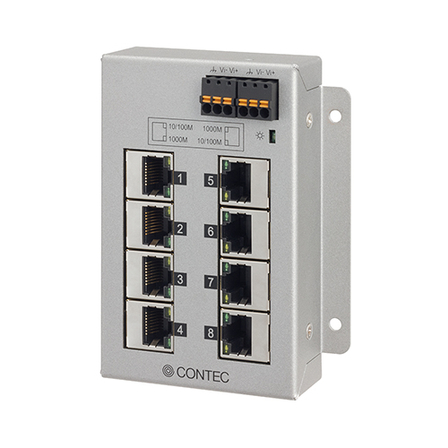

Flat-type industrial switching hub Gigabit 8-port
Flat design 8-port industrial switching hub
This is a flat-type 8-port industrial switching hub. It can be used in locations where quiet operation is required due to its fanless design. It achieves an operating temperature range of -40 to +70°C and is equipped with features such as dual power supply and reverse polarity protection. ● Compact, flat-type design Its compact shape (68(W)x110(D)x24.5(H)mm) allows for easy wiring even in space-constrained panel installations. ● Equipped with 5 ports supporting 1000BASE-T It features a total of 8 ports compliant with the maximum IEEE 802.3ab (1000BASE-T) standard. ● Wide range power input and dual power supply support It supports power supply from 8 to 54VDC. It is designed for dual power supply from two sources, ensuring continued operation even if one power source encounters a problem. It has a safe design that allows normal operation even if the power is wired in reverse, and it is equipped with an FG terminal on the power connector. ● Wide temperature range (-40 to 70°C) It excels in environmental resistance and durability, making it safe to use in harsh industrial environments. ● Can be installed on DIN rails or walls.
basic information
Ethernet Standards: Compliant with IEEE802.3/IEEE802.3u/IEEE802.3ab Data Transfer Speed: Automatic recognition of 1000Mbps/100Mbps/10Mbps Communication Method: Full/Half Duplex on all ports (automatic recognition) Flow Control: Full Duplex: Compliant with IEEE802.3x flow control Half Duplex: Back pressure Number of Ports: 8 Switching Method: Store & Forward Address Table: 2,048 entries Jumbo Frame: 9Kbyte Buffer Capacity: 1Mbits Aging Time: 300sec (Max.) LED Indicators: POWER×1 (green), 1000M LINK/ACT×5 (green), 100M/10M LINK/ACT×5 (yellow) Rated Input Voltage: 8V - 54VDC ±5% FG Terminal: FG terminal present on power input connector Current Consumption: 0.70A (Max.) at 8V input, 0.13A (Max.) at 54V input Dimensions (mm): 68(W)×110(H)×24.5(D) (excluding protrusions) Weight: 300g
Price range
P2
Delivery Time
OTHER
*Although this is a ready-to-ship product, the delivery time may vary depending on the quantity. Please feel free to contact us.*
Model number/Brand name
SH-9008FT
Applications/Examples of results
Integration into industrial manufacturing equipment, such as in harsh manufacturing environments.
Line up（2）
| Model number | overview |
|---|---|
| AC adapter (12VDC, 1A) POA201-10-2 | |
| Flat-type industrial switching hub Gigabit 5-port SH-9005FT |
