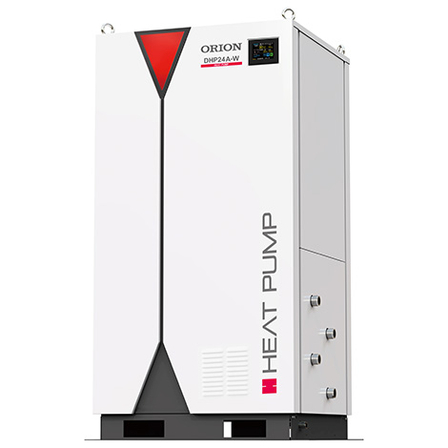

Heat Recovery Heat Pump (Air Source) / DHP-A
Recover exhaust heat using a heat pump system for effective use in heating water. Contributes to reducing running costs and CO2 emissions.
The heat recovery heat pump (air heat source) is a device that utilizes waste heat from machinery rooms, such as the compressor room, to produce hot water, achieving a heating performance with a maximum hot water temperature of 90°C through heat pump-based heat recovery. In addition to supplying hot water, it is expected to improve the environment by lowering the temperature of the machinery room by recovering waste heat. Furthermore, it can be used not only in the summer when the machinery room becomes hot but also in winter at surrounding temperatures of 20°C, allowing for significant reductions in running costs and CO2 emissions throughout the year.
basic information
■ Examples of heated water supply: steam boilers, hot water for cleaning, etc. ■ Hot water inlet temperature range: 15–70℃ → Hot water outlet temperature range: 20–90℃ ■ Operating ambient temperature range: 20–50℃ *Designed for installation in machine rooms, capable of handling up to 50℃. ■ Ideal for replacing conventional heat source equipment. ■ Heating COP of 3.4 or higher. (Under certain conditions set by the manufacturer) ■ Achieves industry-leading energy savings by utilizing waste heat to reduce CO2 emissions. ■ Capable of indoor installation with a capacity range (24kW), allowing for decentralized installation at use points. ■ Significantly reduces running costs. ■ Easy operation with a touch panel. ■ Large LED display allows for monitoring of operating status from a distance. ■ Uses low GWP refrigerant R513A. (GWP: Global Warming Potential)
Price range
Delivery Time
Model number/Brand name
Orion Machinery
Applications/Examples of results
[Examples of heated water supply] Steam boilers, food processing processes, hot water for cleaning, etc. [Examples of heat sources using air] Compressor room, boiler room, machine room, etc.
