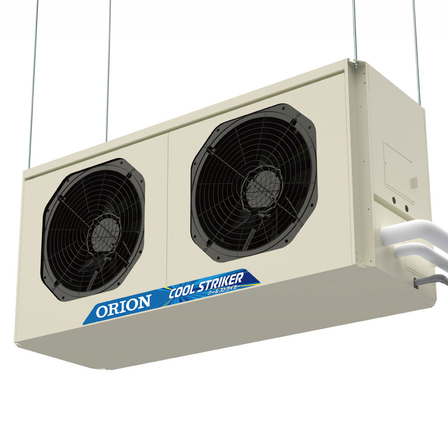

New release! Heatstroke prevention for factories and warehouses! High airflow air conditioning unit Cool Striker.
New release! Suitable for large spaces such as factories and warehouses! Wind reaches 1 meter per second or more at a distance of 20 meters! A top-class model with a large airflow in the industry!
【Overwhelming Power to Cool the Site】 As measures against heatstroke in the workplace become mandatory, investing in equipment to protect employee health is becoming increasingly important. Additionally, summer heatstroke measures are essential to prevent the outflow of talent due to deteriorating working conditions. The extreme heat countermeasure air conditioning unit, Cool Striker, features a high airflow design with a maximum airflow of 150m³/min. With a large fan, it ensures a wind speed of over 1m/s even 20 meters away, supporting wide spaces. It effectively delivers airflow even in large areas such as factories and warehouses, contributing to the reduction of heatstroke risks. 【Main Features】 ■ Maximum airflow of 150m³/min, top-class airflow design in the industry. ■ Ensures a wind speed of over 1m/s even 20 meters away with a large blower. ■ Airflow can be switched between three levels. ■ Easy to introduce in factories and warehouses with a three-phase 200V power supply. ■ Separate outdoor unit that exhausts air outside to prevent heat buildup indoors. ■ Unlike a fan, it blows air cooled by refrigerant. ■ Can also be used as a heating unit in winter. ■ Efficiently blows air to targeted areas with optional blow-out ducts. ■ Compatible with environments that draw in oil with an optional oil mist filter set. ■ Designed with maintenance considerations such as drain processing.
basic information
■【Airflow Switching】High/Medium/Low ■【Processing Airflow】High: 150・Medium: 120・Low: 80m³/min ■【Selectable Temperature Range】Cooling: 20–35℃/Heating: 15–30℃ ■【Rated Cooling Capacity】25kW ■【Rated Heating Capacity】28kW ■【Indoor Unit】H728×W1604×D579mm・99kg ■【Outdoor Unit】H1430×W940×D320mm・123kg ■【Power Supply】Three-phase 200V±10%・50/60Hz ■【Noise Level】High: 72・Medium: 66・Low: 58dB (Indoor Unit) ■【Refrigerant】R32
Price information
Please feel free to consult with us.
Delivery Time
Model number/Brand name
AP150A
Applications/Examples of results
【Installation Examples】 Factories, warehouses, schools, gymnasiums, sports centers, event venues, large retail stores, etc. 【Usage Examples】 Heatstroke prevention, temperature regulation of storage spaces, and more. <Manufacturing> ■ Heatstroke prevention for workers in factories and warehouses ■ Protection from heat in work areas ■ Cooling measures for specific equipment, etc. <Schools, Venues, Public Facilities> ■ Club activities and gatherings in school gymnasiums ■ Air conditioning for events and ceremonies ■ Air conditioning for local evacuation centers and polling places, etc.
Detailed information
-
【Introduction Image of Factories and Warehouses】 Places where shutters and doors are always open, walls without insulation, and many windows that allow significant heat intrusion will incur high costs for air conditioning the entire room. By using a cool striker to direct wind directly at people, it becomes possible to implement cost-effective measures against heat-related illnesses.
-
[Image of Gymnasium Introduction] The gymnasium is used not only for classes, club activities, and school assemblies, but also as a community evacuation center and polling place during elections. In addition to students and faculty, it provides support for evacuees during disasters and elderly individuals as a measure against heat-related illnesses.
Line up（1）
| Model number | overview |
|---|---|
| AP150A |
