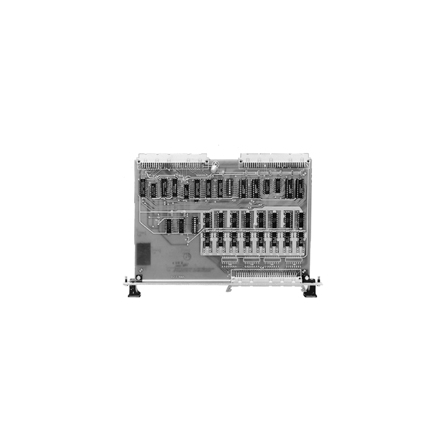

VMIVME-2170A
32-bit Optically Isolated Digital Output
Optically Coupled Digital Output board consists of VMEbus compatibility logic,data control logic, four 8-bit output registers, and 32 optically isolated high-level outputs. The board is implemented as a double Eurocard form factor PC board, and provides all necessary address decoding and data transfer control logic to accept both 8- and 16-bit data transfers. Optical couplers isolate the 32 outputs from each other and from the VMEbus. Both supervisory and nonprivileged data transfers are supported.
basic information
• 32 optically isolated outputs • 2.5 or 300 mA outputs • Externally supplied pull-up voltage for maximum isolation • Field-configurable pull-up resistors • Source or sink output capability with low current option • High output voltage tolerance to 30 V normal mode • High isolation potential; 1 kV sustained, 6 kV pulsed • Positive or negative true options • 8- or 16-bit data transfers • On-board DIP switches provide 14-bit board address selection • Double Eurocard format with front panel
