BeLight usage example: Flat cable insulation material
Can also be used as adhesives or substrates! Introduction to flat cable materials.
Introducing the applications of the thermoplastic ultra-low transmission loss film "BeLight" used in the insulation material of flat cables. With the trend towards thinner devices, flat cables have become mainstream. Conventional materials face issues: PI and PET are unsuitable for high-frequency applications, while LCP is expensive and has poor processability. This product can be used both as an adhesive for FFC and as a substrate. By using this product, the insulation part (adhesive + substrate) can be made low dielectric. 【Expected Benefits (FFC Applications)】 ■ Reduction of transmission loss - By lowering the dielectric constant and dielectric loss tangent, it contributes to the suppression of signal attenuation, especially in high-frequency bands. ■ Thinning and flexibility of cables - With a low dielectric constant, it contributes to the thinning of the insulation layer required for the specified characteristic impedance and enhances cable flexibility. *For more details, please download the PDF or feel free to contact us.
basic information

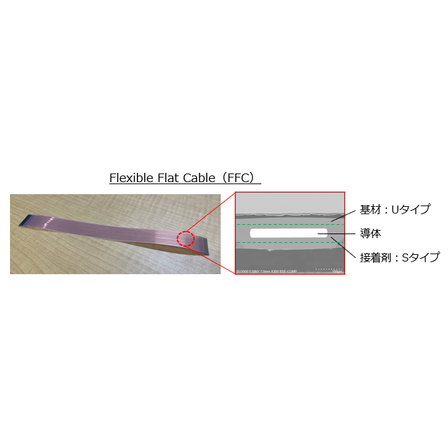

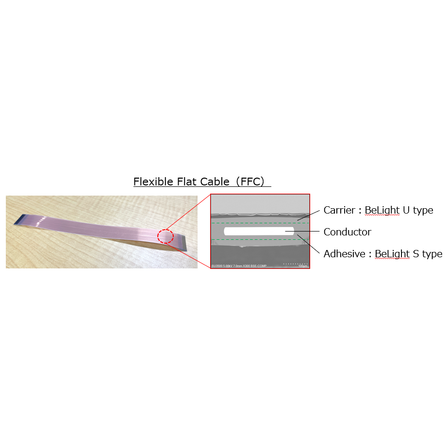

【Overview of FFC Case】 ■ Confirmed wire embedding by Using BeLight to the adhesive. ■ Its strong adhesion enables low-dielectric performance across the entire structure, including the substrate. 【Overview of FFSC Case】 ■ Good adhesion to copper foil and UV laser processing capability ■ Passed reflow test (275℃, 30sec) by adopting a special shape *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
