Fireproof blanket for electric vehicles "EV Fire Blanket"

Passed DIN Spec 91489:2024-11! A product that can be deployed quickly and reliably even in the rain.

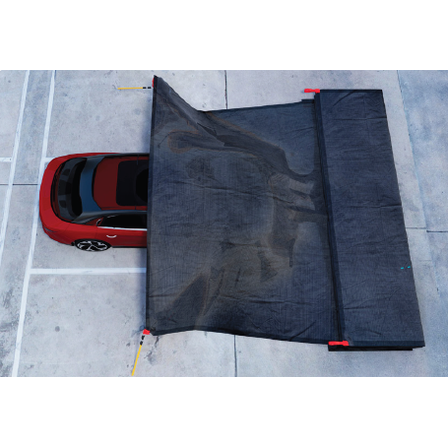

The "EV Fire Blanket" is a fire protection blanket designed for electric vehicles that can be deployed quickly and reliably. It combines robustness and ease of use with woven glass coated in a unique silicone/graphite composite, allowing setup in less than 30 seconds even in the rain. With double stitching and corner reinforcement, it is built for durability, with a lifespan of approximately 10 years. 【Features】 ■ Fire-resistant material: Made from woven glass coated in a unique silicone/graphite composite ■ Outstanding durability: Pursues durability through double stitching and corner reinforcement ■ Speed without confusion: The tip strap is color-coded in red, allowing for immediate deployment in emergencies ■ Accurate positioning: Center marks are placed on all edges for quick setup at the center of the vehicle ■ Compact storage: The flexible material allows for tight rolling and excellent practicality *For more details, please download the PDF or feel free to contact us.

Related Link - https://mb-l.net/

basic information

【Specifications】 ■Standards: Complies with DIN Spec 91489:2024-11 (Requirements for fireproof blankets for electric vehicles) ■Heat resistance: No tearing up to 1200°C (no tearing after long exposure at 800°C, no tearing after several hours in a furnace at 1000°C, no tearing even after 5 minutes at 1200°C) ■Size: 6m × 8m ■Total weight: 28kg ■Storage bag: IP65 rated ■Lifespan: Approximately 10 years (visual inspection once a year) ■Material: Woven glass coated with a proprietary silicone/graphite composite ■Accessories: Two deployment poles (0.8m when stored, extendable to approximately 1.3m when in use), A4 waterproof pouch for information sharing, deployment & storage "how-to guide" *For more details, please download the PDF or feel free to contact us.

Price range

Delivery Time

Applications/Examples of results

【Applications and Examples of Achievements】 ■ Fire response for electric vehicles (EV) and firefighting use ■ Compatibility with vehicles of high overall height (the 0.8m deployment pole extends up to 1.3m, making it usable for taller vehicles) ■ Setup support in the rain *For more details, please download the PDF or feel free to contact us.
