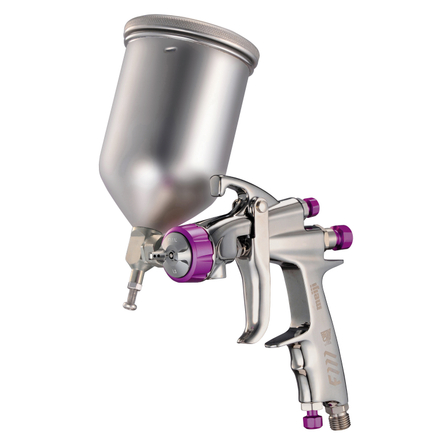

Low Pressure Hand Spray Gun | F111L Series

[New Release] New Low-Pressure Atomizing Hand Spray Gun

- New cap design - Paint adjustment screw pitch 1.0mm - Twilight chrome plating used on the handgun body

basic information

Pressure Feed F111L-P08LP 　Nozzle Diameter: 0.8mm 　Air Pressure: 0.27MPa 　Air Consumption: 475L/min 　Paint Output: 170mL/min F111L-P10LP 　Nozzle Diameter: 1.0mm 　Air Pressure: 0.27MPa 　Air Consumption: 475L/min 　Paint Output: 255mL/min F111L-P13LP 　Nozzle Diameter: 1.3mm 　Air Pressure: 0.27MPa 　Air Consumption: 475L/min 　Paint Output: 335mL/min Suction Feed F111L-S20LS 　Nozzle Diameter: 2.0mm 　Air Pressure: 0.18MPa 　Air Consumption: 315L/min 　Paint Output: 140mL/min Gravity Feed F111L-G13LS 　Nozzle Diameter: 1.3mm 　Air Pressure: 0.16MPa 　Air Consumption: 290L/min 　Paint Output: 100mL/min F111L-G15LS 　Nozzle Diameter: 1.5mm 　Air Pressure: 0.16MPa 　Air Consumption: 290L/min 　Paint Output: 115mL/min

Price information

Please feel free to contact us.

Delivery Time

Please contact us for details

Please feel free to contact us.

Model number/Brand name

F111L

Applications/Examples of results

- Automotive repair painting - Finishing paint for furniture and wooden products - Painting of metal products, etc. They are used for various purposes.

Line up（6）

Model number	overview
【Pneumatic】F111L-P08LP	Paint nozzle diameter: 0.8mm 　Spray air pressure: 0.27MPa 　Air consumption: 475L/min 　Paint output: 170mL/min
【Pneumatic】F111L-P10LP	Paint nozzle diameter: 1.0mm Spray air pressure: 0.27MPa Air consumption: 475L/min Paint output: 255mL/min
Pressure type F111L-P13LP	Paint nozzle diameter: 1.3mm Air pressure: 0.27MPa Air consumption: 475L/min Paint output: 335mL/min
Suction Type F111L-S20LS	Paint nozzle diameter: 2.0mm Air pressure: 0.18MPa Air consumption: 315L/min Paint output: 140mL/min
Gravity Type F111L-G13LS	Paint nozzle diameter: 1.3mm Air pressure: 0.16MPa Air consumption: 290L/min Paint output: 100mL/min
Gravity Type F111L-G15LS	Paint nozzle diameter: 1.5mm Air pressure: 0.16MPa Air consumption: 290L/min Paint output: 115mL/min

catalog（1）

Download All Catalogs

New Low-Pressure Atomizing Hand Spray Gun Released | F111L Series

PRODUCT

Contact this catalog

News about this product（1）

[New Release] New Low-Pressure Atomizing Hand Spray Gun | F111L Series
- Product news
1. New Cap Design - Improved atomization performance, reduced splatter and debris. - Aluminum material adopted for weight reduction. - Achieved stabilization over a wide pattern (suppression of unevenness). - Coating efficiency increased by approximately 2% under the same conditions (compared to F110L). 2. Paint Adjustment Screw - Screw pitch of 1.0 mm adopted for ease of use (same as F110L). 3. Handgun Body - F111 compatible body, featuring twilight chrome plating for surface treatment. - Stainless steel trigger adopted. - Ergonomic design grip that accommodates various holding styles. - Purple anodizing used for the cap nut and threaded parts.
