ACGII -A | Automatic Universal Angle Cutting Machine | Compatible with Aluminum Frames and Wood
Height 120mm × Width 300mm, cuts at a 45-degree angle in one go! A circular saw cutting machine that can also handle angled corners with free angles.

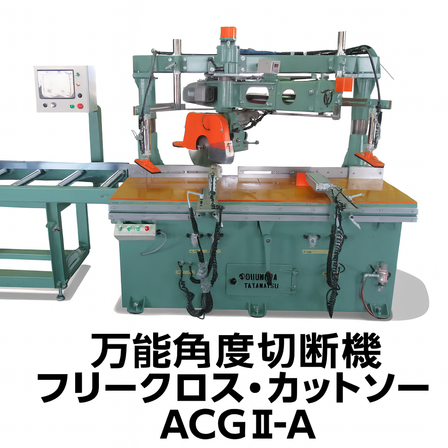

The "ACGII-A" is a semi-automatic circular saw cutting machine that swings the arm left and right and tilts the blade axis, allowing for various angle cuts. 【Features】 ■ Cuts a width of 450mm × height of 120mm in one go with a blade diameter of 405mm! ■ Smooth sliding feel and high-precision bearings built-in. ■ Capable of straight cuts, various angle cuts, and groove processing. ■ Can cut wood at a 45° angle. ■ The column can be adjusted up and down with a handle for groove processing. *For more details, please refer to the PDF document or feel free to contact us.
basic information
■Blade used: 405 mm ■Motor: 2.2 kW ■Arm swing angle: +60 degrees to -60 degrees ■Blade tilt angle: Left 45 degrees ■Maximum cutting capacity: Height 120 mm (4 inches) × Width 450 mm Options: - Sliding back support rule - Angle digital display - Rear chip collection cover, etc. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
ACG2-A Free Cross Cut Sewn Top
Applications/Examples of results
【Uses】 ■ Butt joint cutting of interior materials such as baseboards, window frames, and picture frames ■ Angle cutting of aluminum sashes for handrails and caps ■ Corner cutting of partitions ■ 45-degree cutting of aluminum frame materials ■ Truss cutting of residential roofing materials ■ Cutting of feather edge materials in precut factories ■ Angle cutting of plywood
Detailed information
-
■Standard Equipment | Pneumatic Upper Clamp with Position Adjustment
-
■Standard Equipment | Backrest Ruler Aluminum Angle
-
■Options｜ Installation of automatic sizing device (auto positioner)
-
■Option | Left and Right Sliding Backrest Ruler
-
■Option | Angle display 0.05 degrees (3 minutes) unit
-
■Option | Front pressing air cylinder
-
■Option | Ball screw feed with inverter control for front and rear movement of the cutting tool (rodless specification)
-
■Option | Rear dust collection cover | Two dust duct openings included
-
■Option｜Semi-dry lubrication with cutting oil spray
Related Videos
Line up（2）
| Model number | overview |
|---|---|
| ACGII (manual type) | Mounting tool: φ405 Tool front and back: manual guide |
| ACGII-A (Automatic Type) | Mounting Tool: φ405 Tool Front and Back: Air Hydro Cylinder |
