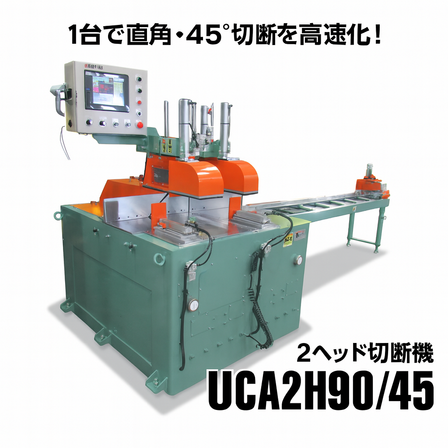

One machine for right angle and 45-degree cutting! Two-head aluminum cutting machine.
A space-saving multi-functional machining center that balances cutting quality and work efficiency.
The quality required for cutting is becoming more advanced every day. Additionally, with the reduction of workspace, there is a strong demand for compact machine dimensions. The UCA2H90/45 is a space-saving combined processing machine that handles two processes: straight cutting of aluminum profiles and 45° inclined cutting, all in one unit. It integrates years of expertise in cutting machines with the latest aluminum profile cutting technology, achieving high productivity and stable quality at a high level. Furthermore, by adopting upper clamps positioned on both sides of the cutting tool and two horizontal clamps, it balances safety and workability. This machine will greatly contribute to future high-efficiency production.
basic information
【Specifications】 ◇Blade diameter (mm): 510, 2 pieces ◇Cutting width (mm): 300 ◇Cutting height - perpendicular axis (mm): 145 ◇Cutting height - 45-degree axis (mm): 110 ◇Main spindle motor: 2.2 kW × 2P, 2 units ◇Main spindle speed: 3000 rpm (50Hz) / 3600 rpm (60Hz) (■Inverter variable speed - optional) ◇Main spindle drive: Ball screw feed
Price range
Delivery Time
Model number/Brand name
Undercut T-shirt type UCA2H90/45
Applications/Examples of results
【Achievements】 ■Cuttable Materials - Aluminum frame profiles, wood, plastic profiles, etc. ■Applications - Straight cuts of the above materials, diagonal cuts due to axis inclination.
Line up（1）
| Model number | overview |
|---|---|
| UCA2H90/45 | Diameter of the chip saw (mm): 510, 2 pieces |
