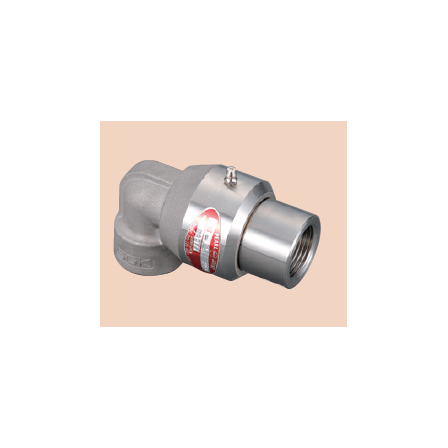

Pearl Swivel Joint "A/AS/B/C/CS Series"
It can rotate smoothly in 360 degrees! This product uses ring-shaped seals such as O-rings in the main seal, demonstrating stable sealing performance.
This product is a swivel joint that exhibits stable sealing performance and allows for smooth 360-degree rotation. The bearing section incorporates two rows of steel balls and is lubricated with grease. The bearing section is processed with high precision, eliminating any play, and the movement of the shaft is limited to the swivel direction. There are six styles available based on the combination of the body and shaft, and the material of the main seal and grease can be selected according to the fluid used and the application. 【Features】 ■ Incorporates two rows of steel balls in the bearing section, enabling smooth 360-degree rotation ■ Uses a ring-shaped packing for the main seal, providing stable sealing performance ■ Offers six styles based on the combination of the body and shaft ■ Allows selection of main seal material and grease according to the fluid used and application ■ Designed to prevent play with a high-precision processed bearing section *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 ■ A Series: Connection Tapered thread (Rc) / Main components Ductile cast iron, Carbon steel / Main seal O-ring NBR / Size 10A to 100A / Maximum pressure 4.1MPa / Maximum temperature 100℃ ■ AS Series: Connection Tapered thread (Rc) / Main components Stainless steel / Main seal O-ring NBR / Size 10A to 80A / Maximum pressure 4.1MPa (65A/80A: 2.1MPa) / Maximum temperature 100℃ ■ B Series: Connection Tapered thread (Rc) / Main components Carbon steel / Main seal O-ring NBR / Size 10A to 40A / Maximum pressure 13.7MPa (10A to 15A), 9.0MPa (20A to 32A), 6.0MPa (40A) / Maximum temperature 100℃ ■ C Series: Connection Flange / Main components Carbon steel / Main seal O-ring NBR / Size 40A to 300A / Maximum pressure 2.1MPa / Maximum temperature 100℃ ■ CS Series: Connection Flange / Main components Stainless steel / Main seal O-ring NBR / Size 40A to 200A / Maximum pressure 2.1MPa / Maximum temperature 100℃ *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Hose connection ■ Movable pipeline for multiple products ■ High-temperature applications ■ Oxygen applications ■ For food machinery ■ Underwater use *For more details, please download the PDF or feel free to contact us.
