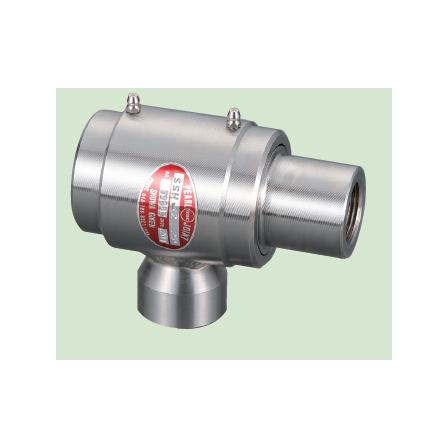

Swivel Joint "SRK/SSH Series"
Usable in high-pressure environments! The Pearl Swivel Joint SRK/SSH series exhibits stable sealing performance.
This product is a swivel joint designed for use in high-pressure ranges. By placing the flow path between the left and right radial ball bearings, thrust loads due to fluid pressure do not act on the bearings. As a result, changes in dynamic torque due to pressure variations are minimized. An O-ring (with backup ring) is used for the main seal, providing stable sealing performance from low to high pressure ranges. Two radial ball bearings are incorporated, ensuring there is no play. 【Features】 ■ Usable in high-pressure ranges ■ Minimal changes in dynamic torque due to pressure variations ■ Stable sealing performance from low to high pressure ranges ■ Structure with no play *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 ■SRK Series - Connection: Tapered thread (Rc) - Material: Carbon steel - Main seal: O-ring (NBR) - Size: 10A to 80A - Maximum pressure: 10A to 40A 34.3MPa / 50A to 80A 24.5MPa - Maximum temperature: 100℃ ■SSH Series - Connection: Tapered thread (Rc) - Material: Stainless steel - Main seal: O-ring (NBR) - Size: 10A to 25A - Maximum pressure: 20.6MPa - Maximum temperature: 100℃ *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■ Hose for connecting products ■ Movable pipeline for using multiple products *For more details, please download the PDF or feel free to contact us.
