High-efficiency hole processing and burr suppression - Six Margin Drill
Achieving high-speed processing, stable processing, and burr suppression.

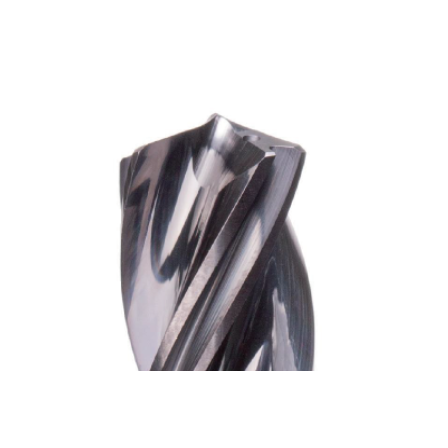

■ Achieves high-precision hole processing on a wide range of materials Adapts to a broad spectrum from steel to stainless steel. ■ Realizes high-precision positioning with a unique chisel edge (self-centering chisel edge) Hole position accuracy is good even without centering. ■ Achieves high-speed processing with a three-blade design that excels in hole processing Realizes high-speed processing at cutting conditions more than twice that of typical two-blade carbide drills. ■ Achieves high processing accuracy with three blades and six guides that enhance processing stability Simultaneously achieves the necessary processing accuracy for hole processing, such as hole diameter accuracy, roundness, surface roughness, and straightness. ■ Improved chip evacuation due to a unique three-blade shape The unique three-blade tip shape finely cuts chips, and the polished groove shape significantly enhances chip evacuation. ■ Reduces burrs due to the effect of the unique chisel edge Also ideal for pilot holes for taps.
basic information
Both M9963 (3×ΦD) and M9965 (5×ΦD) are internal lubrication types. Both model numbers are available in the following 12 sizes for the blade diameter: Φ4.0, Φ4.01, Φ5.0, Φ5.01, Φ6.0, Φ6.01, Φ8.0, Φ8.01, Φ10.0, Φ10.01, Φ12.0, Φ12.01. With a tip angle of 140° and a unique chisel edge, they achieve high-precision positioning. The three-blade design excels in hole processing for high-speed machining, while the unique six guides ensure stable processing. The proprietary tip blade shape and polished groove shape improve chip evacuation, dramatically reducing burrs.
Price information
For detailed pricing and delivery times, please contact your usual tool supplier.
Delivery Time
Model number/Brand name
Super hard 3-blade six-margin drill
Applications/Examples of results
<High Rigidity and High Precision> With three blades and six points (two for each blade, etc.) of margin (the outer guide part), the bending of holes is minimized, improving straightness and roundness. <High-Speed Processing> Compared to two-blade drills, the feed rate per rotation can be increased, reducing processing time. <Deburring Suppression> The special tip shape dramatically suppresses burrs when the hole is penetrated.
Detailed information
Line up（2）
| Model number | overview |
|---|---|
| Super hard 3-blade six-margin drill M9963- | Internal oil supply type 3×ΦD |
| Super hard 3-blade six-margin drill M9965- | Internal oil supply type 5×ΦD |
