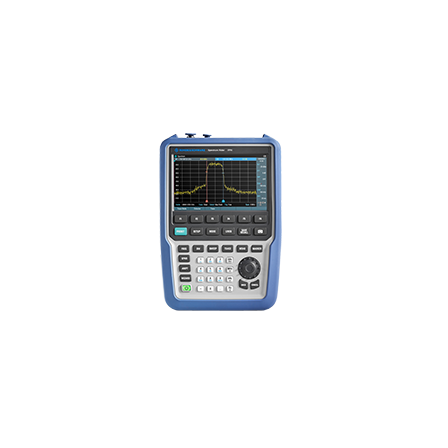

Handheld Spectrum Analyzer "R&S Spectrum Rider"
A new model of handheld spectrum analyzer that continues to meet user needs.
■Intuitive operability with a capacitive touch panel ■Large hard keys, hard keys with backlighting, and a low-reflection display enable safe operation whether wearing gloves or at any time of day ■Equipped with a battery that lasts for 8 hours ■Weighs only 2.5 kg (including battery) ■Frequency can be easily expanded with optional additions. No calibration is required after expansion (limited to within the calibration period) 【Application Examples】 ■EMI debugging ■RF design and debugging ■Education and training ■Spectrum monitoring ■Electric field strength measurement ■Signal location ■Testing and maintenance of RF transmitters *For more details, please contact us.
basic information
【Main Features】 ■Frequency Range: 5 kHz ~ 4 GHz (Standard: ~ 2 GHz) ■DANL: < -160 dBm (10 MHz ~ 3 GHz) (Typ.) ■Phase Noise: -105 dBc (1 Hz) @ 100 kHz Offset ■Sweep Time: 34μs (Zero Span), 20 ms (Span < 600 MHz) ■Level Accuracy: 0.5 dB (10 MHz ~ 4 GHz)
Price range
Delivery Time
Model number/Brand name
R&S (R) FPH
Applications/Examples of results
【Application Examples】 ■EMI Debugging ■RF Design and Debugging ■Education and Training ■Spectrum Monitoring ■Electric Field Strength Measurement ■Signal Location ■Testing and Maintenance of RF Transmitters *For more details, please download the catalog or contact us.
Line up（3）
| Model number | overview |
|---|---|
| R&S(R)FPH | Frequency range: 5 kHz to 2 GHz |
| R&S(R)FPH + R&S(R)FPH-B3 | Frequency range: 5 kHz to 3 GHz |
| R&S(R)FPH+R&S(R)FPH-B3+R&S(R)FPH-B4 | Frequency range: 5 kHz to 4 GHz |
