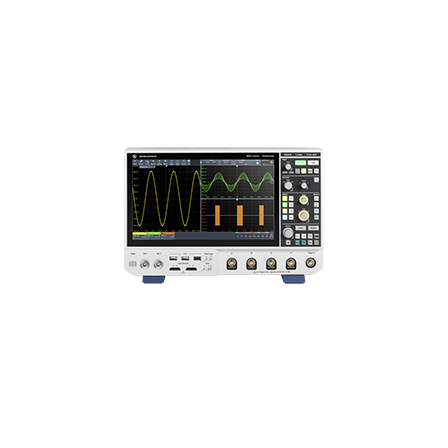

Oscilloscope "MXO 4 Series"
Introducing a new generation oscilloscope equipped with dual-path protocol analysis capabilities! Accelerate your analysis.
The "MXO 4 Series" is a product that achieves high-speed analysis with rapid insights through groundbreaking technological innovation. It features a 13.3-inch full HD capacitive touchscreen and an intuitive user interface, allowing users to master the operation in just 15 minutes. It achieves an update speed exceeding 4.5 million waveforms per second and is equipped with one of the industry's largest standard memory capacities of 400 million points per channel. 【Features】 ■ Achieves an update speed exceeding 4.5 million waveforms per second ■ 12-bit ADC available at all sampling rates ■ Fastest in its class with highly accurate spectrum analysis ■ Equipped with one of the industry's largest standard memory capacities of 400 million points per channel ■ Industry-leading trigger rearming time of 21 ns ■ Class-leading trigger jitter of less than 1 ps *For more details, please download the PDF or feel free to contact us.
basic information
【Other Features】 ■ MXO-EP processing ASIC ■ 12-bit ADC, 18-bit vertical axis architecture ■ Highly responsive large-capacity memory ■ Advanced digital trigger system ■ Capable of automatic measurement, FFT, or cursor measurement *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Main Applications】 ■EMI Debugging ■Logic Analysis ■Serial Bus Analysis ■Input Power Quality Evaluation ■Frequency Response Analysis ■Power Rail/Switching Characteristics Debugging *For more details, please download the PDF or feel free to contact us.
catalog（2）
Download All Catalogs
News about this product（2）
-
Rohde & Schwarz announces three-phase power analysis software for the MXO series oscilloscopes.
Rohde & Schwarz provides power analyzer-level analysis capabilities to the MXO series oscilloscopes with the new R&S MXO-K333 three-phase power analysis software option. Designed for engineers developing and debugging three-phase AC systems, this option combines numerical results with key power measurements and waveform visualization, allowing for a quick correlation between power behavior and actual signal events, thereby streamlining the investigation of issues.
-
Integration of Chroma and MXO oscilloscopes into the ATS 8000 platform to enhance the high-performance power test ecosystem.
Rohde & Schwarz's MXO series oscilloscopes are now supported by Chroma's Power Conversion Device Automated Test System Model 8000 (ATS 8000). This integration addresses the increasingly complex testing requirements in high-power, multi-channel applications, including power systems used in AI data center infrastructure. Power electronics engineers using the ATS 8000 platform for automated testing and system integration will be able to leverage the advanced real-time waveform capture capabilities of the next-generation MXO oscilloscopes within their existing test environments.
