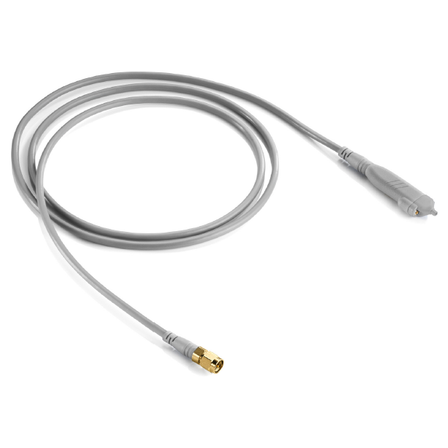

Passive Wideband Probe
A low-cost alternative for measuring control impedance lines!
The "wideband passive probe," which achieves low noise and high linearity, is a low-cost solution for measuring controlled impedance lines. Its compact design makes it easy to measure on densely populated printed circuit boards. It can be used as a low-cost and powerful measurement tool instead of an active probe when measuring high-speed signals on low-impedance lines. 【Features】 ■ Nearly constant across the entire frequency range ■ Extremely low input capacitance and low noise ■ High linearity, suitable for spectrum analysis applications ■ Standard accessories - Soldering pins, rigid chips, soldering ground pins, spring-loaded ground chips, pin connector adapters, etc. *For more details, please download the PDF or feel free to contact us.
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
