Light Attenuator OVA-100 | High Precision Attenuation Control - Maximum 100dB
High-precision control of optical power. Up to 100dB optical attenuator compatible with BERT testing and WDM evaluation.

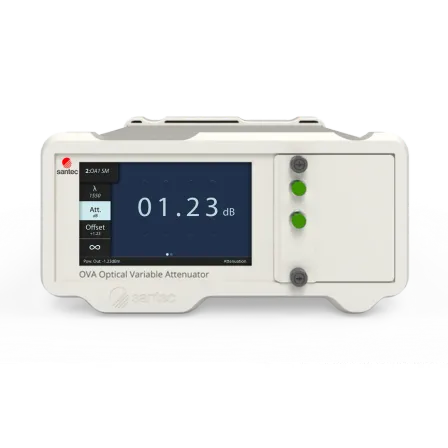

The OVA-100 is an optical attenuator characterized by high precision and excellent reproducibility, available in benchtop or rack-mounted configurations. It can be utilized for adjusting optical output levels in automatic test systems, from research and development to mass production testing, such as bit error rate testing (BERT) for transceivers and variation compensation for each wavelength channel in WDM systems. It achieves high reproducibility of ±0.01 dB and a wide dynamic range of up to 100 dB. Operation is supported via a touch screen on the front panel or remote control through USB and Ethernet. The OVA series attenuators operate in the wavelength range of 1200 to 1700 nm for single mode and 750 to 1700 nm for multi-mode. Additionally, by adding a photodiode (PD) for power monitoring, it can automatically adjust to the set power level while monitoring output power, thereby establishing a stable testing environment.
basic information
- High precision: ±0.1dB - High reproducibility: ±0.01dB - Dynamic range: up to 100dB - USB/Ethernet communication compatible - Power monitoring function (optional) 【Related Products】 - Optical Back Reflector OVB-100 | Supports high-precision reflection evaluation Compatible with evaluation and calibration of optical reflection characteristics. https://inst.santec.com/jp/products/test-and-measurement/attenuator/ovb-100 - Stabilized Light Source SLS-100 | Supports high-stability light output A stabilized light source for optical component evaluation. https://inst.santec.com/jp/products/test-and-measurement/lightsource/sls-100 - Multi-Channel Optical Power Meter OPM-150 | Simultaneous measurement of up to 24 channels Simultaneous measurement of optical power for up to 24 channels. https://inst.santec.com/jp/products/test-and-measurement/powermeter/opm-150
Price range
Delivery Time
Model number/Brand name
OVA-100
Applications/Examples of results
- Optical component testing in mass production processes - Optical power adjustment for research and development purposes - Bit error rate testing (BERT) - Inter-channel equalization for WDM systems - Integration into automated optical evaluation systems - Characterization of optical communication devices
Detailed information
-
<High Precision and Reproducibility> Achieves high precision of ±0.1dB and high reproducibility of ±0.01dB. Since test conditions can be consistently reproduced, it can be widely utilized from research and development to mass production testing.
-
<Custom Support> In addition to standard SM fiber, MM fiber, and PM fiber, we also support custom fiber configurations. Flexible system construction is possible according to your needs.
-
<Wide Wavelength Range> Supports a wide wavelength range of 1200 to 1700 nm for single mode and 750 to 1700 nm for multi mode. Achieves high-precision attenuation control in various optical communication evaluations, such as BERT tests and WDM assessments.
