Fire-resistant thermal insulation material for fire doors, fire walls, and partitions.
Fire resistance equivalent to approximately 2 hours at 14mm and 3 hours at 20mm. Ultra-high-performance insulation material that makes fire protection equipment thinner and lighter.

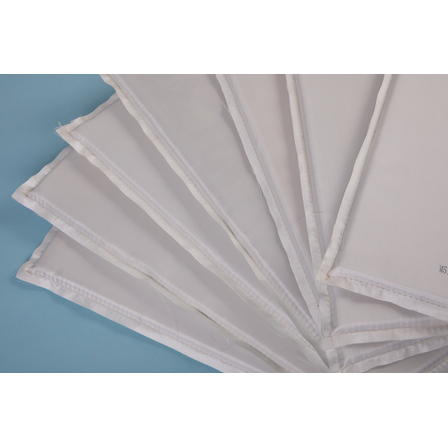

Silsaam is an optimal microporous insulation material for fire doors, fire walls, and fire-resistant partitions. Its excellent insulation performance contributes to achieving fire resistance equivalent to 2 hours with a thickness of approximately 14mm and 3 hours with a thickness of approximately 20mm. By significantly reducing the thickness and weight required for conventional fire-resistant structures, it contributes to the thinning, lightweighting, and design flexibility of fire protection equipment. Additionally, it is primarily composed of non-combustible inorganic materials, maintaining excellent insulation performance even in high-temperature environments. It is suitable for a wide range of applications that require high fire resistance, including fire doors, fire walls, fire-resistant partitions, data centers, semiconductor factories, battery storage facilities, and nuclear-related facilities.
basic information
■Features - Approximately 14mm thick, equivalent to 2 hours of fire resistance - Approximately 20mm thick, equivalent to 3 hours of fire resistance * - About 1/3 the thickness of gypsum board - About 1/10 the weight of gypsum board - Ultra-low thermal conductivity and high insulation - Contributes to the thinning and lightweighting of fire protection equipment ■Main Applications - Fire doors - Fire walls - Fire-resistant partitions - Fire-resistant boxes - Data centers - Semiconductor equipment - Battery storage equipment *Performance may vary depending on structure and testing conditions.
Price range
Delivery Time
Model number/Brand name
Silsarm Panel (FR)
Applications/Examples of results
■Fire Protection and Fire Resistance Industry - Fire-resistant doors / Elevator doors / Tunnel fire resistance / System batteries / LiB / Data loggers / Specific fire protection equipment / etc. ■Other Manufacturing Industries - Steelmaking: Blast furnace hot blast stove / Ladle / Tundish / Heating furnace / etc. - Non-ferrous: Melting furnace / Holding furnace / Distribution equipment / Transport ladle / Electrolytic refining furnace - Industrial furnaces: Carburizing furnace / Heat treatment furnace / Electric furnace / Burner tiles / etc. - Fuel cells: BOP / Fuel reforming equipment / etc. - Others: Power plants / Medical temperature-controlled transport containers / etc.
catalog（1）
Download All Catalogs
Recommended products
Distributors
**What is Micro-porous High-Performance Insulation Material?** ♦ It boasts insulation performance superior to still air, making it the world's most outstanding high-performance insulation material. ♦ It is called "micro-porous" due to its internal structure containing nano-level pores. ♦ Composed of amorphous silica particles with a diameter of approximately 5 to 25 nm, infrared reflective materials such as silicon carbide, and inorganic filaments, it is safe for the environment and human health. ♦ With a high heat resistance and made entirely of inorganic materials, it also serves effectively as an excellent fire protection material. ♦ Depending on the industry, it is referred to by various names such as "super high insulation material," "high-performance insulation material," and "micro-pore insulation material." **About Silsaam Japan** ♦ We consistently manufacture from the raw material fumed silica to the final product of micro-porous insulation materials. ♦ Our strength lies in providing high-quality, low-cost, and high-value-added products to our customers. ♦ We actively engage in product development of insulation and fireproof materials using fumed silica, offering comprehensive solutions to various challenges faced by our customers.
