IoT Angle Sensor Unit PAK x5 [Explosion-Proof Model]
Realizing Analog DX in Explosion-Proof Areas

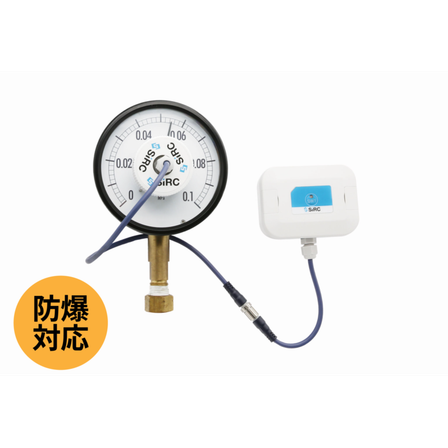

We enable the IoT transformation of instruments installed in "explosion-proof" areas, such as chemical plants, where there is a risk of fire and explosion, achieving efficiency in inspection operations and stable operations. We eliminate the cumbersome tasks of directly visually confirming mechanical meter indicators and manually writing down values, allowing for the digital acquisition of indicator values simply by retrofitting existing analog meters like pressure gauges. ■■Product Features■■ - Intrinsically safe explosion-proof structure This is an intrinsically safe explosion-proof structure that can be used in ZONE 1 (hazard level 1 area). - Remote monitoring The values indicated by analog meters are digitized, allowing for remote monitoring and inspection. - Safety measures It reduces inspection work in hazardous locations such as high places and dark areas.
basic information
【Product Specifications】 <Measurement Interval / Communication Interval> 10 seconds / 1 second <Accuracy Reference> ±2% of F.S. <Communication Specifications> Bluetooth <Battery Life Estimate> Approximately 5 years (at room temperature 20℃) <Operating Ambient Temperature> -20 to 60℃ <Storage Temperature> -20 to 70℃ <Operating Ambient Humidity> 35 to 85% Rh <Environmental Performance> IP67 <Destination> Japan
Price range
Delivery Time
Model number/Brand name
IoT Angle Sensor Unit PAK x5 [Explosion-Proof Model]
Applications/Examples of results
Streamlining inspection and patrol operations
Line up（3）
| Model number | overview |
|---|---|
| PAK15 | Corresponding gauge size: Φ75 [Size/Diameter 76mm, Height 25mm, Weight 80g] |
| PAK25 | Corresponding gauge size: Φ1008 [Size/Diameter 101mm, Height 25mm, Weight 90g] |
| PAK05 | Communication unit [Size/80mm x 60mm x 30mm Weight/Approximately 110g] |
catalog（1）
Download All Catalogs
Recommended products
Distributors
SIRC Corporation provides IoT sensors that can be retrofitted to existing equipment without large-scale construction for factories and plants. The main products include the "IoT Power Sensor Unit," which allows for easy measurement of power consumption for each piece of equipment and can be installed in about 15 seconds, and the "IoT Angle Sensor Unit," which can convert existing analog meters into IoT devices. Additionally, SIRC has developed its own cloud service, "SIRC Cloud," to visualize this data and support centralized management of on-site data. SIRC supports "on-site DX" that can be initiated while valuing and making the most of existing equipment.
