Analog Hall Sensor "AH Series" | Non-contact High-Precision Detection
Achieving high-precision analog proximity sensing! A non-contact detection sensor that demonstrates high reliability even in harsh environments.

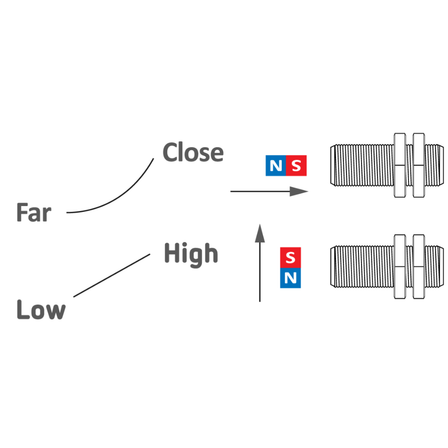

The "AH Series" is an analog Hall sensor that achieves high-precision analog proximity sensing through solid-state Hall effect technology. This product is designed for non-contact detection of magnetic targets and provides a smooth output signal of 0 to 5 V proportional to the distance to the target. It is suitable for applications requiring precise position feedback. Designed with durability and stability in mind, this product operates reliably even in a wide temperature range and harsh environments. With flexible options for housing shape and connection methods, it can be easily integrated into automotive, industrial, and agricultural systems. 【Features】 ■ Linear analog output (0 to 5 V) proportional to target proximity ■ Non-contact, solid-state design that ensures long-term reliability ■ Temperature stability performance for harsh environments ■ Shock and vibration resistance suitable for rugged applications ■ Custom programming available for detection range ■ Compact and highly durable housing (molded, aluminum, stainless steel) ■ Flexible connection options (pigtail, free-end wire, integrated connector) *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 ■ Output Type: Analog 0~5 V ■ Actuator Material: Magnet ■ Frequency: 30 kHz ■ Power Supply Voltage (Vcc): 4.5~5.5V, 8~32V ■ Operating Temperature: -40~110 C ■ Package/Casing: Stainless steel cylinder, screw-in aluminum cylinder, screw-in plastic cylinder, screw-in plastic, flange mount ■ Terminal Type: Integrated connector, connector with cable harness, free-end wire *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Position detection for industrial automation ■ Position of linear drivers ■ Speed detection in industrial automation ■ Position feedback for automotive, industrial, and agricultural systems *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Recommended products
Distributors
The demand for reed switches is becoming increasingly diverse, including miniaturization, cost reduction, high functionality, high reliability, and stable supply of products. OKI Sensor Devices is a specialized manufacturer of reed switches and related products, established to respond meticulously to these customer needs. Leveraging the assets of our predecessor, OKI, we are challenging ourselves in product development and production technology development for the next generation, utilizing our unique production technology for reed switches, cutting-edge production equipment, and a diverse product lineup. Moving forward, we will continue to provide high-quality reed switches and their application products, supporting our customers' excellent product development.
