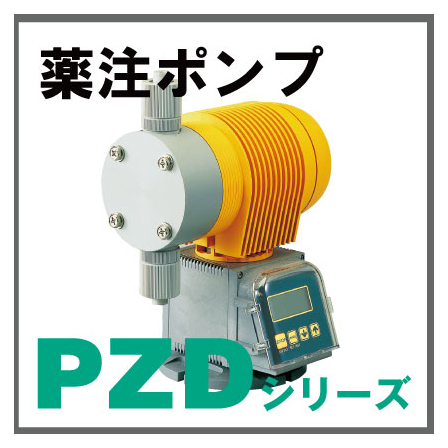

Medication injection pump 'Compatible with polymer coagulant injection! Medium capacity PZD'
Easy setting of injection volume with digital display. Medium-capacity infusion pump PZD compatible with various types of medications.
The PZD series of medication injection pumps, equipped with excellent features, is a solenoid pump from Takumina, which has a proven track record in chemical injection pumps. A solenoid pump uses an electromagnet as its power source, creating a reciprocating motion of the diaphragm by attracting the pump shaft when energized, allowing for precise liquid transfer. It is suitable for cases where a wide range of discharge control is desired or when complex control via external signals is needed. 【Features】 - A wide variety of wetted materials to accommodate various chemicals and applications. - Compatible with high-viscosity liquids such as polymer coagulants. - Allows for diverse proportional control without the need for a regulator. - Enables accurate chemical injection through calibration based on actual discharge volume. - Capable of setting injection amounts in three patterns (based on stroke speed, discharge volume, and percentage). - Free power supply, AC100-240V (±10%). - IEC standard: IP65 equivalent waterproof and dustproof structure. Additionally, all models come with a one-touch calibration function based on actual discharge volume! Please feel free to contact us as we will help you select and introduce the most suitable product for your needs.
basic information
【Product Description】 Takumina's solenoid pump, which has a proven track record in chemical injection. The specifications for general chemical injection and high-viscosity chemical injection are as follows: Maximum discharge volume: 360mL/min, 540mL/min Maximum discharge pressure: 0.2MPa, 0.3MPa Please feel free to contact us as we will help you select and introduce the most suitable product for your needs.
Price information
Please feel free to contact us for a rough estimate.
Delivery Time
Model number/Brand name
Solenoid-driven diaphragm metering pump
Applications/Examples of results
- Injection of chemical solutions such as water treatment, acids, and alkalis. - Injection of chemical solutions in the fields of physics and chemistry, and medicine. - Chlorine sterilization in food factories, simple water supply systems, buildings, and pools. - Injection of boiler chemicals. - Injection of nutrients and disinfectants in agricultural settings such as hydroponics, poultry, and pig farming. We also offer high-pressure micro-injection of various other liquids. Detailed achievements will be introduced by your sales representative. Please feel free to contact us.
catalog（1）
Download All Catalogs
News about this product（2）
-
It is possible to control the injection amount linked with external devices such as flow meters from Takumina! We have released the latest information on Takumina's solenoid pump 'PZi', which excels in controllability.
The leading company in precision pumps, Takumina's solenoid pump series "PZi." Takumina's high-performance solenoid pump "PZi" achieves high-precision injection and a simple system through a variety of automatic controls such as flow proportional control and batch injection. 【Features】 - Three patterns of injection volume settings available (stroke speed, discharge volume, percentage settings) - Free power supply, AC 100-240V (±10%) - Compatible with high-viscosity liquids such as polymer coagulants. - Wide range of wetted materials to accommodate various chemicals and applications. - Precise control at actual flow rates is also possible. - Easy-to-read display panel & simple operation keys - Three-directional swivel head that can be selected according to installation location - Convenient separate head & controller for device integration - Waterproof and dustproof structure equivalent to IEC standard: IP65. - Injection volume can be set according to external analog or pulse signals. Automatic control is possible in conjunction with flow meters and level gauges. - Batch injection and interval injection settings For more details, please refer to the catalog.
-
We have published the latest information on the medium-capacity injection pump "PZD" series, which is compatible with polymer coagulant injection!
The PZD series of medication injection pumps, equipped with excellent features born from hints of customer needs. This is a solenoid pump from Takumina, which has a wealth of experience in chemical injection pumps. A solenoid pump uses an electromagnet as its power source. When energized, the electromagnet attracts the pump shaft, creating a reciprocating motion of the diaphragm to transfer liquids in a precise manner. It is suitable for cases where you want to have a wide control range of discharge volume or perform complex control with external signals. 【Features】 - A wide variety of wetted materials to accommodate a broad range of chemicals and applications. - Compatible with high-viscosity liquids such as polymer coagulants. - Allows for diverse proportional control without the need for a regulator. - Enables accurate chemical injection through calibration based on actual discharge volume. - Allows for three patterns of injection volume settings (based on stroke speed, discharge volume, and percentage). - Free power supply, AC 100-240V (±10%). - IEC standard: IP65 equivalent waterproof and dustproof structure. Furthermore... all models come with a one-touch calibration function based on actual discharge volume! For more details, please refer to the product page or the solenoid product catalog.
