2D Code Reader "VisionMate HSX"

High-performance 2D code reader for laboratories that enables rapid and accurate sample tracking.

This is a high-speed 2D code reader that can read tubes with 2D codes, including Thermo Scientific Matrix and Nunc 2D tubes, in about one second. It can simultaneously read the 2D code on the bottom of the tube and the barcode on the side of the rack. It significantly improves the accuracy and efficiency of sample management. - Flexible format compatibility: Supports Matrix/Nunc 2D tubes and various 24, 48, 96, and 138 (high-density) formats from different manufacturers. - LIMS/ELN integration: Seamlessly export data using Thermo Scientific VisionMate Suite software (requires a separate PC). - IP66 compliant: Safe to use even in clean rooms. - Can be integrated into benchtop and automation systems. When used in conjunction with other products (such as Thermo Scientific Capit-All capping system, 8-channel screw cap handheld decapper, SuperSealer pressure sealer, etc.), it further enhances laboratory automation and traceability.

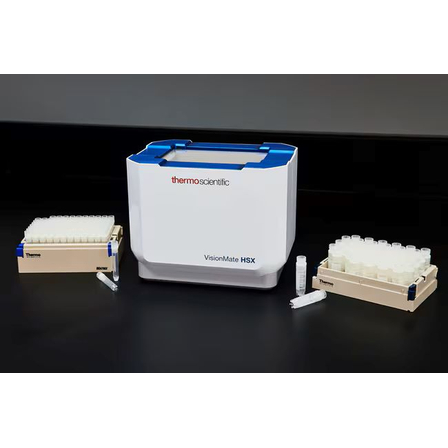

Thermo Scientific VisionMate HSX High Speed 2D Code Reader

basic information

■Reading speed: Approximately 1 second per rack ■Analysis capability: 1 rack (24, 48, 96, 384 format); 1 tube (in single tube mode) ■Compatible tubes: Thermo Scientific 2D code tubes, other manufacturers' 2D code tubes         *Please inquire about the compatibility of other manufacturers' 2D code tubes. ■Data transfer methods: CSV, ODBC, TCP/IP, HTML, XLS, image (PNG, JPG, TIFF, GIF, BMP), VMCSV (VisionMate compatible CSV file), XML ■Power supply: USB powered ■Dimensions (W × D × H): 15 × 20 × 16 cm ■Weight: 4.0 kg ■IP rating: IP66, compliant with IEC 60529 Note: Control PC is not included (not compatible with Mac).

Price range

Delivery Time

Please contact us for details

*Delivery times may vary depending on stock availability, so please feel free to contact us.

Model number/Brand name

312850

Applications/Examples of results

For research use only. Not for diagnostic purposes. These products are intended for use in general laboratories. Please verify whether the product's performance is suitable for your applications and uses. Cryopreservation workflows for compounds, biological samples, genomic samples, etc. Feel free to contact us for more details.

Line up(2)

Model number overview
312850 VisionMate HSX High Speed 2D Code Reader
81100728 PC with Office for machine control
