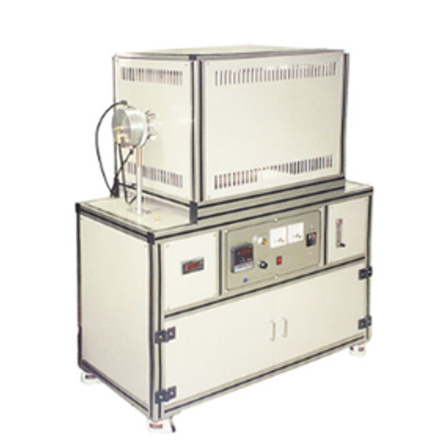

Tube furnace | Test furnace for visualizing reaction behavior
Synchronize and record flow rate, pressure, material temperature, and exhaust to visualize the start to end of the reaction.
We handle "tubular furnaces" that are suitable for visualizing reaction behavior. In general-purpose tubular furnaces, it is often difficult to grasp the timing of reaction start and end, as well as the behavior of gas generation, changes in pressure, and flow rate, as only pre- and post-firing analyses can be performed. This equipment can be configured to synchronize logging of data during the reaction by combining flow meters, pressure gauges, temperature measurements, sampling ports, and exhaust analysis lines according to the customer's objectives. 【Features】 ■ Simultaneous recording of flow, pressure, temperature, and exhaust data ■ Understanding of the timing of reaction start, end, and gas generation ■ Design of sampling ports, bypass lines, etc. ■ Compatible with various atmospheres such as vacuum, inert gas, and H2 ■ Suitable for small-scale tests for exhaust evaluation and condition examination *For more details, please download the materials or contact us.
basic information
【Specifications】 ■ Heating zone: 120mmφ × 500mmL ■ Tube size: 70mmφ × 1000mmL ■ Operating temperature: 1200℃ ■ Atmosphere: Various gases such as inert gas, vacuum, H2, etc. * The above is a representative example. The heating zone, tube size, heating rate, etc. can be customized. 【Compatible Measurement and Auxiliary Equipment】 ■ Addition of MFC, pressure gauge, and thermocouples for material temperature ■ Design of sampling ports and exhaust analysis lines ■ Consideration of bypass lines, drains, and condensation traps ■ Synchronized logging of data during reactions * For more detailed information, please download the materials or feel free to contact us.
Price information
*Please feel free to contact us for more details, as prices may vary depending on the equipment specifications.
Delivery Time
Applications/Examples of results
【Applications】 ■ Evaluation of reaction behavior of powders, catalysts, and battery materials ■ Atmosphere treatment with H2, N2, Ar, humidified gases, etc. ■ Confirmation of gas generation, pressure changes, and temperature changes during firing ■ Small-scale reaction tests accompanied by exhaust gas analysis ■ Examination of reaction conditions, flow rates, heating rates, and holding times 【For such challenges】 ■ Analysis before and after firing does not reveal the start and end of reactions ■ Desire to simultaneously record flow rates, pressures, temperatures, and exhaust data ■ Want to design including sampling ports and back pressure control ■ External instrumentation can lead to calibration and synchronization issues, making reproducibility difficult Even at the stage where conditions are not yet determined, you can consult with us about the furnace configuration and measurement setup tailored to your objectives.
catalog（3）
Download All Catalogs
Recommended products
Distributors
Our company integrates three technologies: "electricity," "equipment," and "chemistry," using our unique know-how to develop innovative heating furnaces and other equipment. We handle various electric furnaces (heating furnaces) such as carbon furnaces, multi-atmosphere furnaces, metal furnaces, and chlorine furnaces, leveraging our proprietary high-temperature electric furnace technology. We are not just an equipment manufacturer; we are a strategic development partner that supports innovative manufacturing with advanced heating, looking ahead to the standards of the next decade alongside our customers.
