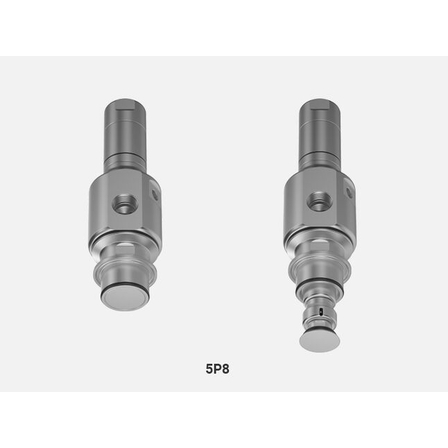

Rehiler manufactured rotary tank cleaning nozzle (model number: 5P8/5P9)
Pneumatic control type protruding rotating nozzle specialized for automatic cleaning of ducts and cyclones: 'SIP compatible', 'usable under vacuum', 'compatible with horizontal and vertical structures'
Product Name: PopUp Whirly Air (Series 5P8/5P9) Protrudes only when needed for cleaning. Achieves hygiene and safety through air pressure control. Main Features: • Automatic protrusion and rotation cleaning via air pressure cylinder • Automatically retracts after cleaning, ensuring airtightness • Compatible with SIP (Steam Sterilization) and usable under vacuum • Dedicated models available for horizontal and vertical ducts and tower structures • Compliant with food and pharmaceutical standards (EC No. 1935/2004 and FDA) • Suitable for explosive atmospheres (ATEX certified) This nozzle maintains a high level of hygiene, cleaning efficiency, and safety in processes where cleaning nozzles cannot be permanently installed (e.g., product flow paths, spray shadow areas).
basic information
Technical Specifications: Maximum operating temperature: 150°C (same for ambient temperature) Recommended operating pressure: 2 bar Starting pressure: approximately 1.6 bar / stopping pressure approximately 0.3 bar Material: 316L/316Ti stainless steel, PTFE, FKM or EPDM Bearing: slide bearing Surface roughness: external Ra ≤ 0.8μm / internal Ra ≤ 1.6μm Weight: approximately 2.2kg Installation direction: can be installed in any direction Others: self-draining design, compatible with drying air blow, sensor mountable
Price range
Delivery Time
Model number/Brand name
Lechler 5P8/5P9 PopUp Whirly Air Hygienic
Applications/Examples of results
Duct (e.g., food and beverage, chemicals, plants)
