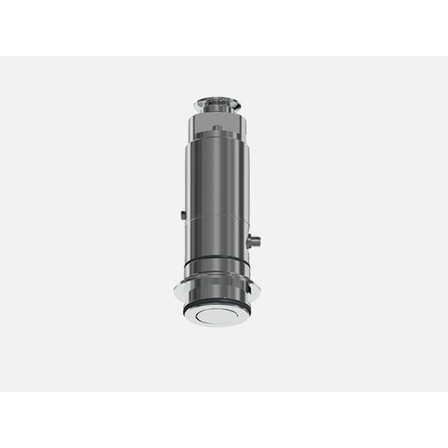

Rehila rotary tank cleaning nozzle (Model: 5P7)
Air pressure-operated protruding and rotating sanitary design cleaning nozzle! After cleaning, it is stored in a sealed manner, making it ideal for the food, pharmaceutical, and chemical industries.
The PopUp Whirly Air Hygienic is a pneumatically controlled protruding rotating nozzle designed for equipment where a cleaning nozzle cannot be permanently installed within the process. The nozzle extends only during cleaning, rotates to clean the surrounding area, and then automatically retracts and seals, ensuring both hygiene and safety. Key features: • The nozzle extends pneumatically and automatically retracts and seals after cleaning. • Can be completely flush-mounted to the wall (no protrusions). • Self-draining design accommodates almost all directions. • Position detection possible with IO-Link compatible sensors. • Can protrude without relying on hydraulic pressure (operates solely on pneumatic pressure). • Food contact compliant (in accordance with EC No. 1935/2004 and FDA). This nozzle achieves a high level of hygiene, cleaning efficiency, and maintainability in structures such as piping, containers, and cyclones where a cleaning nozzle cannot be permanently installed.
basic information
Technical Specifications: • Maximum operating temperature: 95°C • Maximum ambient temperature: 65°C • Recommended operating pressure: 2.5 bar • Flow rate: approximately 54 L/min at 2.5 bar • Installation orientation: all directions supported (horizontal and vertical) • Bearings: free-spinning rotor structure • Materials: 316L stainless steel, PEEK, EPDM or FKM • Additional features: air flush compatible, additional parts (nuts and nipples) available
Price range
Delivery Time
Model number/Brand name
Lechler 5P7 PopUp Whirly Air Hygienic
Applications/Examples of results
Duct (e.g., food and beverage, chemicals, plants)
