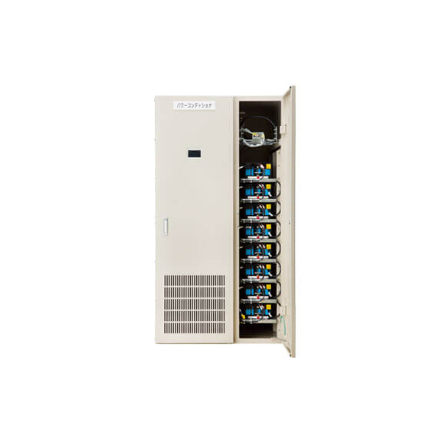

Battery System GS Yuasa Lineback ΣIII
Adoption of solar power generation system integration for elevators, water supply pumps, commercial air conditioning, commercial refrigerators, LED lighting, and other public systems.
Customizable medium-capacity three-phase energy storage system - DC link system - Peak cut - Fire prevention regulations - FRT compatible - Ministry of Land, Infrastructure, Transport and Tourism construction specifications - Output control - Seismic S class - Quiet performance - LiB full cell monitoring - Power outage response
basic information
Output capacity: 10kVA, 20kVA, 30kVA, 40kVA, 50kVA Inverter method: Voltage-type current control (grid-connected) / Voltage-type voltage control (standalone) Power control: Maximum power tracking control Insulation: Non-isolated (transformerless) Cooling: Forced air cooling DC input rated voltage: 400V AC output phases: Three-phase 3-wire AC output voltage: 202V AC output frequency: 50Hz or 60Hz AC output power conversion efficiency: 94.0% Battery types: Lithium-ion battery, lead-acid battery panel (MSE type / SNS type / SLR type)
Price range
Delivery Time
Applications/Examples of results
[Manufacturer Achievements] Meiji Gakuin University: Energy Storage 500kWh Komatsu Community Center: Energy Storage 25kWh Ritto City Hall: Energy Storage 16kWh Yokohama Refrigeration Co., Ltd.: Energy Storage 33kWh
Line up（5）
| Model number | overview |
|---|---|
| LBBFA-10-T3CR☐☐-F-B | 10kVA 600×800×1900320kg |
| LBBFA-20-T3CR☐☐-F-B | 20kVA 600×800×2300400kg |
| LBBFA-30-T3CR☐☐-F-B | 30kVA 1200×800×1900720kg |
| LBBFA-40-T3CR☐☐-F-B | 40kVA 1200×800×1900810kg |
| LBBFA-50-T3CR☐☐-F-B | 50kVA 1200×800×1900850kg |
