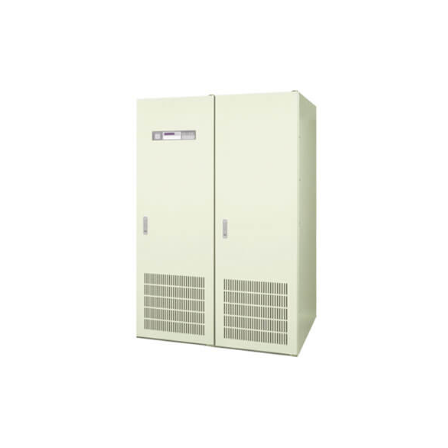

Battery system GS Yuasa manufactured Lineback Omega ES
Adoption of solar power generation system integration for elevators, water supply pumps, commercial air conditioning, commercial refrigerators, LED lighting, and other public systems.
Large capacity and high output, autonomous interconnection function, AC link system, optimal output method for self-consumption - AC link system - Peak cut - Fire prevention regulations - FRT compatible - Ministry of Land, Infrastructure, Transport and Tourism specifications - Seismic S class - Full cell monitoring of LiB - Power outage response
basic information
Output capacity: 100kVA, Inverter type: Voltage-type current control (grid-connected) / Voltage-type voltage control (standalone) Power control: Maximum power tracking control Insulation: Non-isolated (transformerless) Cooling: Forced air cooling DC input rated voltage: 547V AC output phase number: Three-phase 3-wire AC output voltage: 202V AC output frequency: 50Hz or 60Hz AC output power conversion efficiency: 94.0% Battery type: Lithium-ion battery
Price range
Delivery Time
Applications/Examples of results
[Manufacturer Performance] Takamatsu City Waterworks: 100kWh Energy Storage
Line up（1）
| Model number | overview |
|---|---|
| LBBG-100-T3CR | 〇 Power conditioner panel 100kVA 900×900×1900 650kg 〇 Standalone operation output panel 600×900×1900 300kg 〇 Switchboard 1000×900×1900 500kg 〇 Lithium-ion battery panel 53kWh 1000×900×1900 1100kg |
