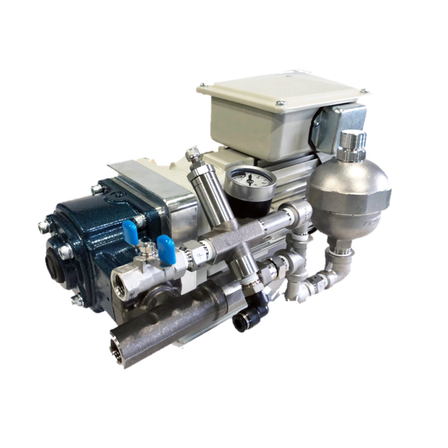

Ultra-compact high-pressure pump 'AGM1003'
Supplying high-pressure water with a small amount of water. Achieving a constant 6 MPa! For precise ultra-high pressure type, high-pressure supply with a small amount of water.
The "AGM1003" is a compact-sized ultra-small high-pressure pump that supplies high-pressure water with a small amount of water, achieving a regular pressure of 6MPa. 【Features】 ○ Compact size of L258mm × W221mm × H141mm ○ Regular 6MPa high-pressure water obtainable with a small amount of clean water at 100V 0.1kW ○ Lightweight at 12.6Kg, suitable for small spaces ○ Oil-free (no lubrication) pump ○ Ceramic materials used for the plunger ○ Standard equipped with an accumulator to prevent pulsation *For more details, please download the catalog or contact us.
basic information
【Specifications】 ○Model AGM1003-1A AGM1003-1B ○Pressure Operating 6 MPa ○Pump Oil-less single plunger ceramic pump, SUS316 ○Motor 0.1kW-1/3 100V CNVM01-3 ○Dimensions L330mm × W210mm × H200mm (Pump body) ○Noise Level At 6 MPa, approximately 50 dB ○Weight 12.6 kg *For more details, please download the catalog or contact us.
Price range
Delivery Time
Applications/Examples of results
Disinfection, mist device, static electricity, medical, agriculture and livestock industry, food
