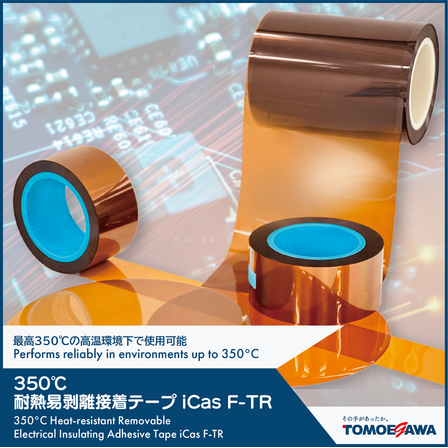

High-heat resistance tape can be used up to 350 °C. It is suitable for temporary fixing of electronic parts manufacturing process.

iCas F-TR has unique characteristics to increase adhesion temporary by heating then to reduce adhesion strength by continuing heating. Therefore, even under high-temperature environments, the tape adheres firmly to the substrate and can be easily removed after the process has been completed without leaving any adhesive residue. In addition, since additional process such as heating or UV irradiation is not required when peeling off the tape, it is also possible to improve work efficiency. The tape is suitable for temporary fixing applications in manufacturing process of electronic parts, etc. [Features] - Capable to adhere to various materials at room temperature (Ex. copper, gold, alumina, silicon, etc). - Compatible with reflow process and dry/wet process such as plasma flux cleaning. - Able to be peeled off at room temperature after heat treatment process (thermal peeling is possible). - Possesses superior chemical resistance against various chemicals such as toluene, THF, IPA, etc. - Designed as PFAS-Free formulation. [Application] - Components carrier tape in the manufacturing process. - Temporary fixing to backside of substrates such as silicon, glass, alumina for FO-WLP. - Masking use under high temperature environment (plating, soldering, thermal spraying, etc.) - Preventing mold resin bleed of lead frame package.
