Control the smoke leaking from outdoor smoking areas with the "Outdoor Air Curtain."
Are you troubled by the smoke and smell of cigarettes in outdoor smoking areas?

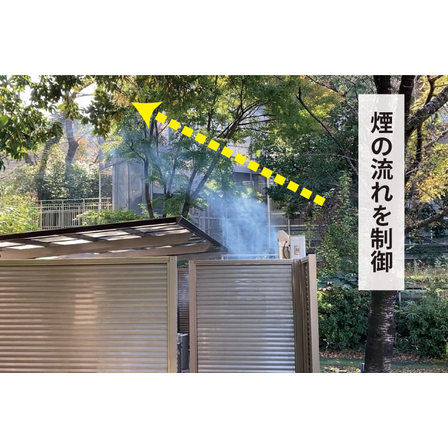

In some cases, outdoor smoking areas with fence-type structures can lead to smoke flowing in the direction of non-smokers due to the surrounding environment, resulting in issues such as passive smoking and odor problems. An air curtain that can be used outdoors, designed to suppress smoke leakage from the smoking area, can be installed in the desired direction, using an air curtain with a speed of 7.5 meters per second to control the outflow of smoke.
basic information
Model: ACB10MD Dimensions: W1,000mm × D210mm × H259mm (*) Power Consumption: 60w Outer Panel: Stainless Steel Airflow Rate: 15.5㎥/min Weight: 11kg Neutralizing Deodorizer: TARU-X (2 pieces) Prefilter: SUS24 Mesh Switch Box Dimensions: 520mm × 320mm × 180mm *1: For use with "diagonal upward blowing" outlet *Note for Use: The outdoor air curtain is designed to suppress the outflow of smoke and steam. Strong winds may cause the airflow to move in unintended directions.
Price information
Please contact us.
Delivery Time
Model number/Brand name
ACB10MD
Applications/Examples of results
To a smoking area with outdoor partitions.
