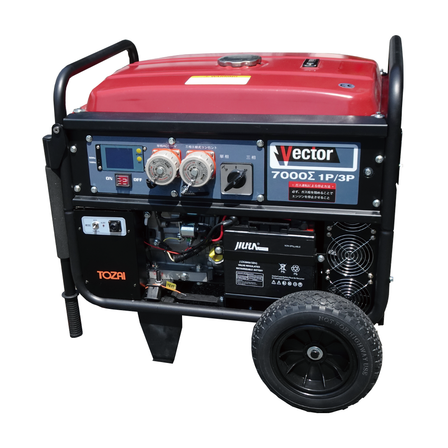

High-capacity three-phase power generator Vector Σ series
Portable generator capable of handling three-phase 200V, 7.0 kVA, and a starting current of 110A.
【Vector Σ Series】 In addition to the main fuel LP gas model in the Vector series, a gasoline-only model has been introduced. Power inverter model (three-phase 200V) Starting current 110A: This model has a power generation capacity of 14KVA, which is twice that of conventional models.
basic information
■Compatible with a maximum operating current of 110A ■For BCP measures, disaster prevention measures, and connecting three-phase equipment in areas without power Equipped with LP gas as the main fuel, power supply, and inverter, the Vector series portable generator ATS (automatic return function) and remote control function can be set as options. It is a three-phase inverter generator that combines the functions of both stationary and portable types. [Features] 1. Control compatible with both wired and wireless -- ATS via wired connection, ATS/remote control via wireless 2. All models equipped with an inverter 3. Start using a cell method -- Can be started with a button 4. Equipped with a battery checker 5. Optional IoT communication function available
Price range
Delivery Time
Model number/Brand name
Vector Σ Series
Applications/Examples of results
◎ For BCP measures for water and land pumps ◎ For charging forklifts ◎ To protect food in freezers in the kitchen from power outages ◎ For power supply to open and close sand discharge gates via remote communication ◎ As a backup power source for gas heat pump air conditioners
Line up（4）
| Model number | overview |
|---|---|
| Vector7000Σ | [LPG/Gasoline] 7.0 kW Single-phase 115V 60A / Three-phase 200V 32A Portable |
| Vector 7000 Sigma Plus | [LP Gas Exclusive ATS Equipped] Portable for 7.0 kW Single Phase 115V 60A / Three Phase 200V 32A |
| Vector7000Σ-G | [Gasoline Only] 7.0 kW Single Phase 115V 60A / Three Phase 200V 32A Portable |
| Vector7000Σ-WP | [Enclosure type LP gas exclusive, ATS compatible] For 7.0 kW single phase 115V 60A / three phase 200V 32A |
