IP69K waterproof and dustproof! COC company's stainless steel bearing unit.
The unique quadruple lip seal prevents water and dust from entering the bearing! Waterproof stainless steel bearing unit "Suniline".

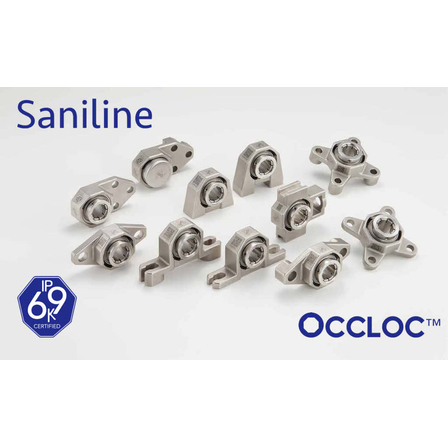

"Saniline" is the first domestic manufacturer to obtain IP69K certification, and it is a waterproof stainless steel bearing unit that demonstrates excellent waterproof and dustproof performance even under high-pressure washing. Thanks to its unique quadruple lip seal, water and dust cannot enter the interior of the bearing, which contributes to the longevity of the bearing. 【Other Features】 ■ Maintenance-free, no lubrication required ■ O'clock mechanism that does not damage the shaft ■ Designed for enhanced hygiene, allowing for cleaning even on the backside ■ Supports two-dimensional code engraving ■ Detachable stainless steel safety cover *Please check the comprehensive product catalog that summarizes multiple lineups via the catalog download button.
basic information
- Dimensions are 100% compatible with JIS pillow blocks. - Shaft diameter settings: Φ12, Φ15, Φ17, Φ20, Φ25, Φ30, Φ35, Φ40 mm. - All stainless steel specification. - Housing material: SUS316. - Bearing box types: pillow type, narrow width pillow type, diamond flange type, square flange type, deformed flange type, take-up type. - A standoff housing with a clearance of 12 mm is provided for each type.
Price range
Delivery Time
Model number/Brand name
COC Waterproof Stainless Steel Bearing Unit "Saniline"
Applications/Examples of results
**Main Applications** - Food manufacturing lines: Conveying lines for prepared foods, processed foods, frozen foods, and confectionery equipment. - Food packaging and packing lines: Processes with high cleaning frequency, such as packaging machines, filling machines, and conveyor equipment. - Beverage bottling equipment: Environments where water and detergents are present, such as bottling lines and conveying equipment. - Pharmaceutical lines: Manufacturing equipment and conveying processes that require hygiene and cleanliness. **Benefits of Implementation** - Waterproof and dustproof design extends bearing lifespan and reduces equipment downtime risk. - High-pressure washing does not allow water ingress, preventing bearing deterioration (rust). - Maintenance workload reduction through oil-free operation. - Prevention of foreign matter contamination due to grease leakage prevention. - Improved cleanliness enhances hygiene management levels. - Increased efficiency in replacement work by preventing shaft damage. - Standard models operate in temperatures from -20°C to 100°C, while low-temperature models operate from -45°C to 125°C, suitable for a wide range of environments.
Detailed information
Line up（7）
| Model number | overview |
|---|---|
| Pillow-shaped unit | |
| Narrow-width pillow-shaped unit | |
| H-shaped flange unit | |
| Corner flange type unit | |
| Deformed flange type unit | |
| Take-up type unit | |
| Set up stand-off housing (12m clearance) for each shape. |
