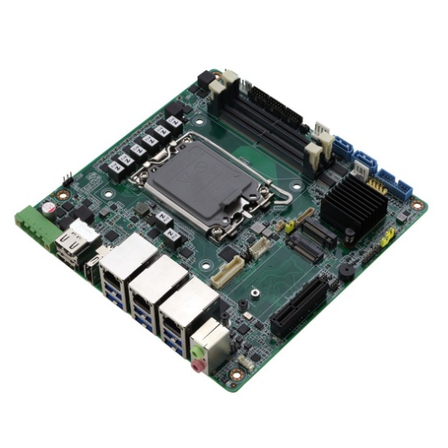

Industrial Mini ITX Standard Motherboard [MIX-H810WV1]


Industrial Mini ITX Standard Motherboard [MIX-H810WV1]


AAEON Mini-ITX standard industrial motherboard compatible with Intel Core Ultra 200S series.

Features ● Compatible with Intel Core Ultra 200S series ● DDR5 SODIMM x 2 (up to 96GB) ● PCIe x4 x 1, M.2 3042/52 B-key x 1 ● USB2.0 x 4, USB3.2 Gen2 x 2 (rear I/O), USB3.2 Gen1 x 1, USB2.0 x 1 (pin header) ● SATA 6Gb/s x 2 ● HDMI 2.0 x 2, DP 1.4 x 1 ● DC input 19V ~ 24V

Related Link - https://jp-vnet.com/

basic information

【CPU】LGA1851 socket type, compatible with the 15th generation Intel Core Ultra 200S series (CPU sold separately) 【Chipset】Intel H810 【Supported Memory】DDR5 SODIMM/CSODIMMx 2 slots (maximum 96GB) (sold separately) 【Expansion Slots】PCIe Gen5 [x4]x 1, M.2 3042/3052 B-Keyx 1 【Rear I/O】USB3.2 Gen2x 2, USB2.0x 4, HDMI2.0x 1, DP1.4x 1, Line-outx 1, Mic-inx 1, 2.5GbEx 2 【Pin Header I/O】USB3.2x 1, USB2.0x 1, LVDS4x 1, AAFP x 1, Speakerx 1, RS-232/422/485x 2, RS-232x 2, 8-bit DIO 【Storage】SATA 6Gb/sx 2, M.2 2280 M-Keyx 1 (NVMe) (sold separately) 【Input Power】DC input 12V-24V 【Operating Temperature】0~60℃ 【Supported OS】Win10/11 (x64) Linux Ubuntu 22.04 *This model does not include CPU, memory, storage, or OS.

Price range

Delivery Time

Applications/Examples of results

Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, gaming consoles, controllers, data loggers, and many others.

Line up（2）

Model number overview
【MIX-H810WV1-2L】 Supports 15th generation Intel Core Ultra200S (Socket LGA1851), DDR5 SODIMM/CSODIMM x 2, HDMI2.0 x 2, DP1.4 x 1, LVDS/eDP x 1, USB3.2 x 4, USB2.0 x 6, 2.5GbE x 2, DC input 19V-24V.
【MIX-H810WV1-3L0】 Supports 15th generation Intel Core Ultra200S (Socket LGA1851), DDR5 SODIMM/CSODIMM x 2, HDMI2.0 x 2, DP1.4 x 1, LVDS/eDP x 1, USB3.2 x 4, USB2.0 x 6, 2.5GbE x 2, GbE x 1, DC input 19V-24V, OOB.

catalog（1）

Download All Catalogs

MIX-H810WV1
