Single Connector for OSFP Optical Transceiver for Communication Equipment
OSFP connectors that support AI and cloud infrastructure. They enable high-speed interconnects for systems with a maximum transmission speed of 1.6T.
The "CN176" series is an interface connector for OSFP optical transceivers. Our high-speed transmission technology achieves a transmission performance of up to 1.6Tbps (PAM4, 224Gbps × 8 channels). It enables high-speed interconnects for communication system equipment such as networking switches, routers, and servers used within and between data centers and in telecom communications. Additionally, we offer related mechanical products such as cages alongside the connectors to broadly support your system design. ◆Features - Transmission performance: PAM4 1.6Tbps (224Gbps x 8ch), 800G (112Gbps x 8ch) - The 1.6T transmission-compatible connector supports modules of up to 40W. - Compliant with the industry standard OSFP MSA. - Applications: Communication system equipment such as networking switches, routers, and servers. For detailed SI characteristic data or product inquiries, please feel free to contact us.
basic information
◆Specifications (General Performance) Operating Temperature Range - Single: -55 ℃ to 85 ℃ - Insertion/Removal Count: Maximum 100 times - Packaging: Reel ◆Specifications (Electrical Performance) - Rated Voltage: Max. 30V DC/contact - Rated Current: Max. 0.5A/contact - Contact Resistance: Max 20mΩ (Max 100mA / Max 20mV) ◆Specifications (Interface Performance) - Pitch: 0.6 - Number of Pins: 60
Price information
Please consult with us.
Delivery Time
Model number/Brand name
CN176 series
Applications/Examples of results
OSFP is widely used in communication equipment, including networking switch devices, router devices, and networking interface cards (NICs).
Line up（6）
| Model number | overview |
|---|---|
| CN176S-060-3101 | Single connector compatible with 1.6T OSFP (OSFP224) |
| CN176S-060-0002 | Single connector compatible with 800G OSFP (OSFP112) |
| CN176S-060-0004 | Single connector with solder tabs compatible with 800G OSFP (OSFP112) |

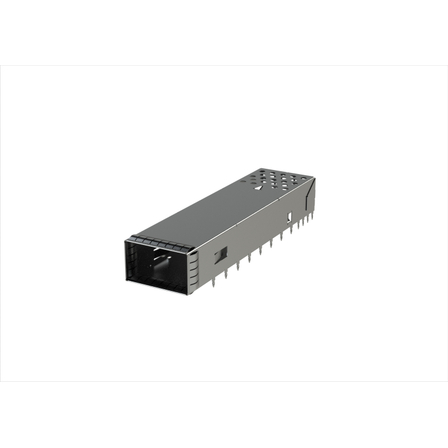

| CN176C-1001-01 | 1x1 cage compatible with 800G and 1.6T OSFP single connector. |
| CN176C-2001-01 | 1x2 cage compatible with 800G and 1.6T OSFP single connectors. |
| CN176C-4001-01 | 1x4 cage compatible with 800G and 1.6TOSFP single connector. |
