Connector for OSFP-XD optical transceiver for communication equipment
Interface connector for OSFP-XD optical transceiver supporting high-speed transmission of up to 1.6Tbps.
The "CN214" series is an interface connector for OSFP-XD (Octal Small form Factor Pluggable eXtra Dense) optical transceivers. Our high-speed transmission technology supports high-speed transmission of up to 1.6Tbps (PAM4, 112Gbps × 16 channels). It enables high-speed interconnects in communication system equipment such as networking switches, routers, and servers. In addition to connectors, we also offer related mechanical products such as cages, providing extensive support for your system design. ◆ Features - Transmission performance: PAM4 1.6Tbps (112Gbps x 16ch) - Compliance with both PCIe and Ethernet standards through 92Ω impedance matching - Excellent heat dissipation design supports 40W modules - Compliant with OSFP-XD MSA - SMT specification For detailed SI characteristic data or product inquiries, please feel free to contact us.
basic information
◆Specifications (General Performance) - Operating temperature range: -55℃ to +85℃ - Insertion and removal cycles: 100 times - Packaging: Reel ◆Specifications (Electrical Performance) - Rated voltage: Max 30V DC/contact - Rated current: Max 0.5A/contact - Contact resistance: Max 20mΩ (Max 100mA/Max 20mV) ◆Specifications (Interface Performance) - Pitch: 0.6 - Number of poles: 120
Price information
Please consult with us.
Delivery Time
Model number/Brand name
CN214 series
Applications/Examples of results
Communication system devices such as network interface cards (NIC), servers, networking switches, and routers.
Line up（5）
| Model number | overview |
|---|---|
| CN214S-120-0002 | 1.6Tbps transmission compatible host connector |
| CN214S-120-0003 | 1.6Tbps transmission compatible host connector (without solder tab) |

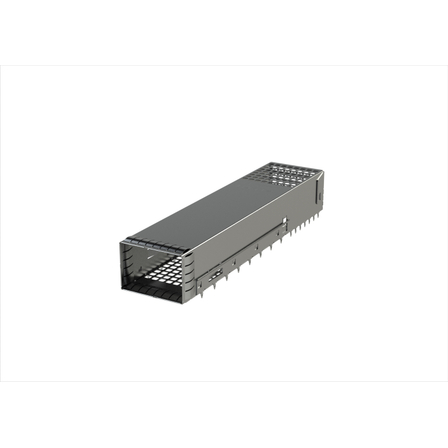

| CN214C-1001-01 | Cage 1x1 Closed Top |
| CN214C-1001-03 | Cage 1x1, with heat sink clip (mechanical set item) |
| CN214B-1001-01 | OSFP-XD RHS Cage 1x1, with heat sink and clip (mechanical set) |
