[For Automotive] SMARC 2.0/MXM 2.0・3.1 Compatible Connector
SMARC 2.0/MXM 3.1 compliant 10Gbps high-speed transmission compatible board edge connector for automotive equipment.
The technology for displaying images on screens is evolving daily. The motherboard has graphics chips directly implemented, making it difficult to update graphics boards or replace them due to issues. To improve this situation, using the Board Edge Connector "CN113 Series" allows for easy replacement compliant with the MXM (Mobile PCI Express Module) standard. This series features a latch and a nut/bolt structure, ensuring a reliable connection. ◆Features Automotive Board Edge Connector - Compatible with automotive equipment - High-reliability contact mechanism adopted - Latch included, vibration-resistant structure with nut/bolt fastening - Supports high-speed transmission of 10Gbps (as defined by our company) - Compliant with MXM 2.0/3.1/SMARC 2.0 - Compliant with ICM 230-pin standard - Ensures wiping during module board insertion
basic information
◆Specifications - Insertion/Removal Cycle: 30 times - Operating Temperature Range: 230 pins -40℃ to 85℃, 314 pins -40℃ to 105℃ - Rated Current: 0.5 to 0.7A - Rated Voltage: DC50V - Dielectric Strength: AC500V (for 1 minute) - Insulation Resistance: 250MΩ or more - Contact Resistance: 100mΩ or less - Number of Pins: 230, 314 - Terminal Pitch: 0.5
Price information
Please consult with us.
Delivery Time
Model number/Brand name
CN113 series
Applications/Examples of results
On-board equipment
Line up（3）
| Model number | overview |
|---|---|
| CN113-314-2201-VE | Board edge connector, number of poles 314 |

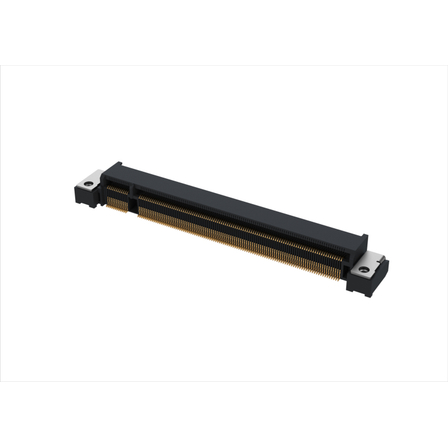

| CN113-230-0001VE | Board edge connector, number of poles 230 |
| CN113-230-0003VE | Board edge connector, number of poles 230 |
