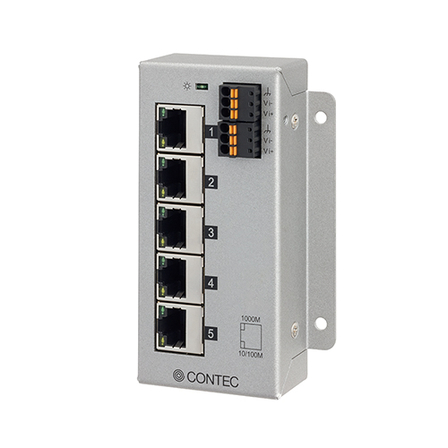

Flat-type industrial switching hub Gigabit 5 ports
Flat design 5-port industrial switching hub
This is a flat-type 5-port industrial switching hub. It can be used in locations where quiet operation is required due to its fanless design. It achieves an operating temperature range of -40 to +70°C and is equipped with features such as dual power supply and reverse polarity protection. ● Compact, flat-type design Its compact shape (50(W)x110(D)x24.5(H)mm) allows for easy wiring even in space-constrained panel installations. ● Equipped with 5 ports supporting 1000BASE-T It has 5 ports that comply with the maximum IEEE 802.3ab (1000BASE-T) standard. ● Wide range power input and dual power supply support It supports power supply from a DC source of 8 to 54VDC. It accommodates dual power supply from two sources, ensuring continued operation even if one power source encounters a problem. It features a safe design that operates normally even if the power is wired in reverse, and it is equipped with an FG terminal on the power connector. ● Wide temperature range (-40 to 70°C) It excels in environmental resistance and durability, making it safe for use in harsh industrial environments. ● Can be mounted on DIN rails or walls.
basic information
Ethernet Standards: Compliant with IEEE802.3/IEEE802.3u/IEEE802.3ab Data Transfer Speed: Automatic recognition of 1000Mbps/100Mbps/10Mbps Communication Method: Full/Half Duplex for all ports (automatic recognition) Flow Control: Full Duplex: Compliant with IEEE802.3x flow control Half Duplex: Backpressure Number of Ports: 5 Switching Method: Store & Forward Address Table: 2,048 entries Jumbo Frame: 9Kbyte Buffer Capacity: 1Mbits Aging Time: 300sec (Max.) LED Indicators: POWER×1 (green), 1000M LINK/ACT×5 (green), 100M/10M LINK/ACT×5 (yellow) Rated Input Voltage: 8V - 54VDC ±5% FG Terminal: FG terminal available on the power input connector Current Consumption: 0.39A (Max.) at 8V input, 0.06A (Max.) at 54V input Dimensions (mm): 50(W) × 110(H) × 24.5(D) (excluding protrusions) Weight: 250g
Price range
P2
Delivery Time
OTHER
This is an in-stock item, but the delivery time may vary depending on the quantity. Please feel free to contact us.
Model number/Brand name
SH-9005FT
Applications/Examples of results
Integration into industrial manufacturing equipment, such as in harsh manufacturing environments.
Line up（2）
| Model number | overview |
|---|---|
| AC adapter (12VDC, 1A) POA201-10-2 | |
| Flat Type Industrial Switching Hub Gigabit 8-Port SH-9008FT |
