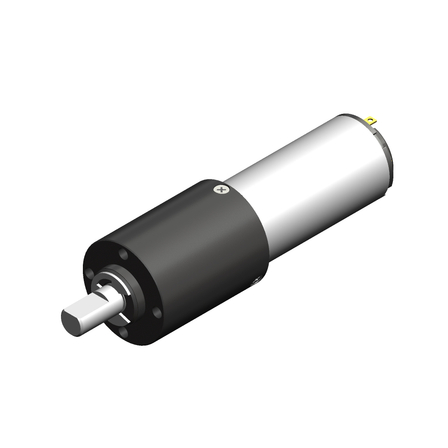

φ22 geared motor (SCR18-37××/IG-22V)
We are using the coreless motor "SCR18-37××" and the planetary gear head "IG-22V"!
We would like to introduce the 'φ22 geared motor' that uses the coreless motor "SCR18-37××" handled by Citizen Micro Co., Ltd. Our lineup includes the "IG-22VM-SRV3702B-06 DC6V" with a starting current of 1940mA, the "IG-22VM-SRV3705B-12 DC12V" with 1450mA, and the "IG-22VM-SRV3713B-12 DC12V" with 2550mA. We also accept development of custom motors and custom gear heads (reduction gears), so please feel free to contact us. 【Partial Lineup】 ■IG-22VM-SRV3702B-06 DC6V ■IG-22VM-SRV3703B-12 DC12V ■IG-22VM-SRV3705B-12 DC12V ■IG-22VM-SRV3712B-12 DC12V ■IG-22VM-SRV3713B-12 DC12V *For more details, please refer to the PDF document or feel free to contact us.
basic information
【IG-22VM-SRV3702B-06 DC6V Specifications (Excerpt)】 ■ Reduction Ratio: 4 (1/i) ■ No-load Rotational Speed: 1950 min-1 ■ Rated Rotational Speed: 1480 min-1 ■ Rated Torque: 9.32 mNm / 0.095 kg·cm / 1.32 oz·in ■ Starting Torque: 38.7 mNm ■ Length (L): 53.5 mm ■ Rotation Direction: CW *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
