Low tightening pressure 'Ultra High Vacuum Delta Seal' for Semiconductor fields such as PVD, CVD, Etching device
Delta Seal (HNV HELICOFLEX(R) DELTA) achieves ultra-high vacuum! [Standardized for JIS V-groove flanges]

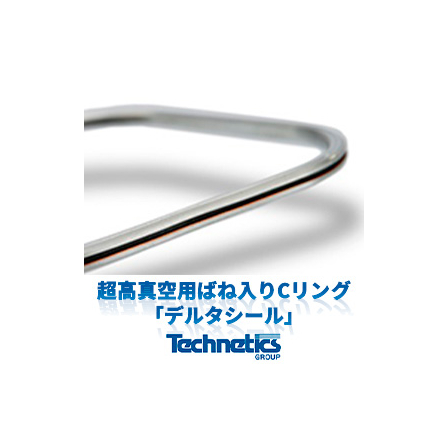

The Delta Seal (HNV HELICOFLEX(R) DELTA) has two delta-shaped protrusions on the contact side of the cross-section. The delta-shaped protrusions are designed to collapse and disappear during the compression of the outer casing when integrated into the flange groove, and the design tightening pressure of the Delta Seal is lower compared to the Helicoflex seal, allowing for replacement with elastomer O-rings. Leakage rate: *For circular shapes, 10⁻¹² Pa·m³/sec. (10⁻¹¹ atm·cm³/sec.) *Depends on the quality of the installation side. Also varies depending on the seal shape. 【Features】 ■Two delta-shaped protrusions on the contact side of the cross-section ■Achieves ultra-high vacuum ■Has excellent elasticity and can be used at high temperatures ■Can be replaced with elastomer O-rings *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications】 ■Dimensions: φ10 to 2000 ■Temperature: -272℃ to 520℃ (ductile outer sheath), -272℃ to 700℃ (low ductility outer sheath) ■Leak rate: *For circular shapes, 10⁻¹² Pa·m³/sec. (10⁻¹¹ atm·cm³/sec.) *Depends on the quality of the installation side. Varies with seal shape. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
