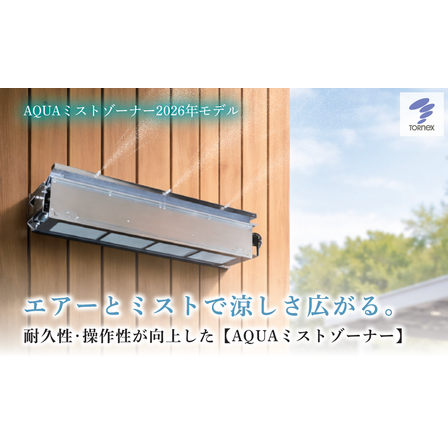

Outdoor Extreme Heat Countermeasure Cooling Air System 'AQUA Mist Zoner'
Beat the summer heat with the AQUA Mist Zoner for a cool and comfortable space!
Simply connect it directly to the water supply for use. No high-pressure pump is required, and its energy-saving design results in low running costs. The wind direction adjustment feature allows you to control the mist dispersion range. It can be linked with up to three units, creating a cool area outdoors. Additionally, it can also be used as an air curtain, contributing to the creation of a comfortable space.
basic information
Model: ACB10MW External dimensions: W1,212mm × D246mm × H310mm Power consumption: 60W Outer panel: Stainless steel Air processing volume: 14㎥/min Nozzle water flow: 11.1L/h (at 0.2MPa) Particle diameter: 45μm Weight: 13.2kg Prefilter: SUS24 mesh Noise level: 68.5dB (suction side) Switch box dimensions: 520mm × 320mm × 180mm
Price information
Sales will begin in May 2025. The price is 456,500 yen (including tax). For details, please contact us.
Delivery Time
Model number/Brand name
ACB10MW "AQUA Mist Zoner"
Applications/Examples of results
AQUA Mist Zone in a place like this ★ At construction sites ★ At kindergartens and daycare centers ★ At sports facilities
Line up（1）
| Model number | overview |
|---|---|
| ACB10MW | AQUA Mist Zoner |
