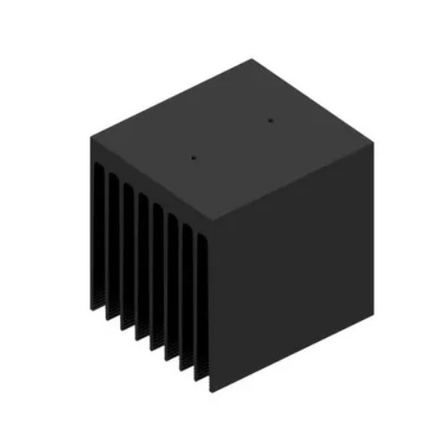

High Thermal Dissipation Heat Sink for SSR SK 507 Series
High thermal conductivity aluminum extruded heat sink compatible with large SSR | Compatible with SSR 1 and SSR 2 mounting patterns
The SK 507 series by Fischer Elektronik is an aluminum extruded heat sink used for thermal management of solid-state relays (SSR). It features a large cross-sectional shape of 90×100mm, achieving high heat dissipation performance and excellent mechanical strength. It is compatible with the mounting patterns for SSR 1 and SSR 2, making it suitable for thermal management of large SSRs used in control panels, industrial equipment, and power supplies. The lineup includes SK 507 75 SSR 1, SK 507 100 SSR 2, and SK 507 150 SSR 2, allowing for selection based on application needs. Additionally, it supports surface treatments (degreasing, white anodizing, black anodizing), specified lengths, and CNC machining.
basic information
Manufacturer: Fischer Elektronik Product Type: Heat Sink for Solid State Relays (SSR) Material: Aluminum Extrusion Cross-Section Dimensions: W90 × H100mm Base Thickness: 12mm Compatible SSR Mounting Patterns: - SSR 1 - SSR 2 Product Lineup: - SK 507 75 SSR 1 - SK 507 100 SSR 2 - SK 507 150 SSR 2 Thermal Resistance: 1.65–0.4 K/W (across the entire series) Surface Treatment: - AL: Degreased - ME: White Anodized - SA: Black Anodized Processing Options: - Cutting to specified lengths - CNC additional processing available
Price range
Delivery Time
Model number/Brand name
SK507・Fischer Elektronik
Applications/Examples of results
- Heat dissipation measures for solid-state relays (SSR) - Control panel - Industrial control equipment - Heater control device - Power supply unit - FA (Factory Automation) equipment - Industrial electronic equipment
