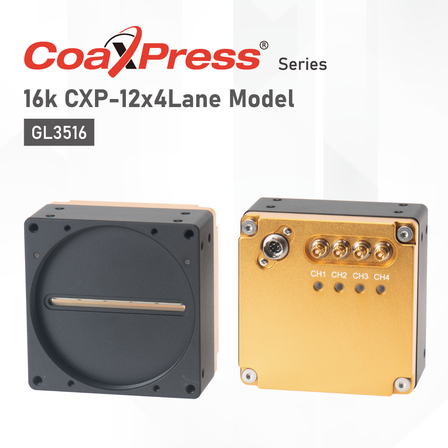

16K Line Scan Camera for Printing
Efficient color proofing of printed materials with 16K resolution and high-speed scanning.
In the printing industry, color proofing requires accurate color reproduction and fast inspection. Color variations and ink misalignment that affect the quality of printed materials not only decrease customer satisfaction but also lead to increased costs due to correction work. The 16K line scan camera, with its 16K high resolution and a maximum line rate of 120kHz, captures the details of printed materials accurately, enabling fast color proofing. 【Usage Scenarios】 - Color proofing inspection of printed materials - Inspection of ink density and color variations - Printing processes that require high-speed line scan inspection 【Benefits of Implementation】 - Detailed inspection made possible by high resolution - Reduction in inspection time due to fast scanning - Improvement in quality control and cost reduction
basic information
【Features】 - 16K resolution (16384 pixels) - Maximum line rate of 120kHz - M72 lens mount - CXP-12x4Lane connection - Random noise suppression (Realtime Clear Boost feature) - Achieves low power consumption and low heat generation - Real-time processing to suppress "false colors" (Realtime Fine Bayer Color feature)
Price range
Delivery Time
Model number/Brand name
BL-GM16KD12X4,BL-GC16KD12X4
Applications/Examples of results
Semiconductor front-end/back-end visual inspection, final visual inspection of semiconductor components, visual inspection of assembled boards, various alignments, and industrial image processing focused on semiconductors and electronics.
Line up（2）
| Model number | overview |
|---|---|
| BL-GM16KD12X4 | 16K / mono / Dual / 120kHz / M72 mount / CXP-12 / MicroBNC connector |
| BL-GC16KD12X4 | 16K / color / Dual / 60kHz / M72 mount / CXP-12 / MicroBNC connector |
catalog（3）
Download All Catalogs
Recommended products
Distributors
We focus on the design, development, manufacturing, and sales of high-speed, high-resolution, and highly reliable machine vision cameras primarily using CoaXPress and CameraLink. In addition to developing standard products, we also offer development and customization tailored to customer requests. All camera design and development is carried out by our Japanese staff, ensuring design and production techniques that guarantee delicate and highly reliable standards in Japan, while integrating the dynamic action and speed of China to provide competitive products. At Japan Bopixel, we have successfully become the first camera manufacturer to utilize Ultra Low Power FPGA instead of the standard FPGA adopted by the majority of camera manufacturers. This Ultra Low Power FPGA reduces power consumption by over 50% compared to similar class FPGAs, significantly lowering power consumption and heat generation in cameras by addressing the heat source at its root. By actively adopting these next-generation key devices, we are taking a new approach to the heat generation issues that have traditionally been a challenge.
