Processing examples of natural rubber inspection port gaskets
Supports various shapes with water jet cutting.

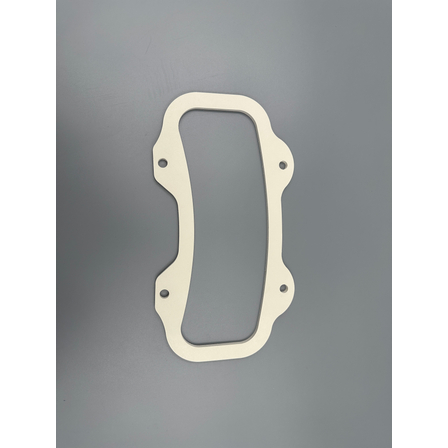

■Overview of Processing Example Product Name: Inspection Port Gasket / Dimensions: 146.37W × 270L × 5t, Hole Diameter φ9 × 4 Locations (with R) / This processing example is an inspection port gasket made from white natural rubber (hardness 40). It is used as a sealing material between the inspection port cover and the frame of the equipment. It has a complex shape with an irregular outer contour and four bolt holes, but it was cut with high precision without the need for a mold using water jet processing. There was no thermal impact on the rubber material, and it was finished without compromising the flexible properties of natural rubber. ■Product Features Natural rubber (NR) is made from the sap of rubber trees and boasts excellent mechanical strength, elasticity, and abrasion resistance. While it is strong against tearing and bending, it is inferior in oil resistance and weather resistance. Therefore, it is widely used in environments that are not exposed to oil or direct sunlight, such as vibration-damping rubber, cushioning materials, and tires (blends).
basic information
■Processing Method Water jet cutting is a water pressure cutting machine that uses high-pressure water to cut materials. It processes by spraying high-pressure water. The injection nozzle can be changed according to the processing material, allowing for the production of high-quality products in a short time. Additionally, the dimensional tolerances that were significantly affected by traditional manual processing are greatly improved, resulting in stable processing accuracy. The taper on the cut surface from press processing can also be improved with water jet processing. ■Q&A Q: Can I choose the hardness of natural rubber? A: Yes, we can accommodate various hardness levels starting from hardness 40. We will suggest the optimal hardness based on your application. Q: Can you provide natural rubber in colors other than white? A: We also handle black and various colored rubbers. We will provide a quote based on your requests. Q: Can dimensional accuracy be maintained even with irregular shapes? A: With water jet processing, high-precision processing of approximately ±0.1mm is possible, even for complex shapes.
Price range
Delivery Time
Applications/Examples of results
Leave the processing of natural rubber gaskets to Daiko. We manufacture high-precision rubber gaskets, including those for inspection ports, in various shapes and special designs using water jet cutting. We can flexibly accommodate everything from single prototypes to small lots and mass production. Please feel free to consult us for custom orders or urgent requests. Don't hesitate to contact us first.
catalog（2）
Download All Catalogs
Recommended products
Distributors
Daiko is a manufacturer specialized in processing various industrial products, including gaskets and packing. With industry-leading processing equipment, including one of Japan's largest water jet cutting machines, and a wide range of materials such as joint sheets, rubber, resin, and metal, we meet our customers' diverse needs. Leveraging the technology and experience we have cultivated over 50 years, we provide high-quality, short-lead-time, and low-cost products to contribute to solving our customers' challenges. To respond to our customers' varied needs, Daiko's production bases are equipped with various processing facilities. Among them, the water jet cutting machines, with a total of four installed at our Osaka headquarters and Tokyo branch, boast one of the largest scales in the country. The maximum processing range is W4,000 × L5,500 mm, allowing for the high-precision manufacturing of large-diameter gaskets and packing. By maximizing material efficiency, we achieve the provision of 'high quality at low cost.'
