Connector for board-to-board (FPC) connection | FB3BA5 series

Height of 0.5mm, 0.3mm pitch, ultra-low profile and ultra-compact connector in the smallest class in the industry.

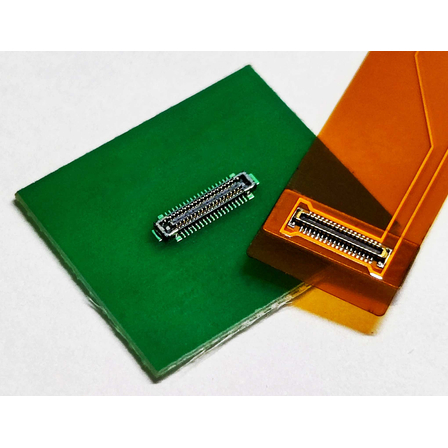

The FB3BA5 series connector is a board-to-board (FPC) connector with a 0.3mm pitch, a mating height of 0.5mm, and a depth of 1.55mm. 【Features】 ■ Pitch: 0.3mm, Mating height: 0.5mm, Product width: 1.55mm ■ Number of pins available: 24, 36 pins ■ Adoption of a metal cap design for a robust structure ■ The metal cap can carry up to 3.0A as a power contact ■ Metal is placed in the center of the receptacle connector: enhanced strength due to the inner metal armor structure ■ Reliable two-point contact structure ■ Achieves a good click feel during mating and improved extraction force *For more details, please refer to the PDF document or feel free to contact us.

basic information

【Specifications】 Rated Voltage: AC 30V (r.m.s.) / DC 30V Rated Current: 0.4A Signal Contact 3.0A Metal Cap Dielectric Strength: AC 200V (r.m.s.) / 1 minute Insulation Resistance: 100 MΩ or more at DC 200V Contact Resistance: 30 mΩ or less for Signal Contact 20 mΩ or less for Metal Cap *For more details, please refer to the PDF document or feel free to contact us.
