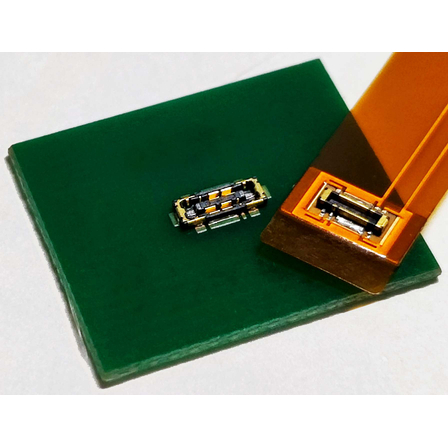

Board-to-board (FPC) battery connection connector | FPB4 series
Low-profile, compact connector for high-capacity batteries capable of 8.0A current with a mating height of 0.6mm.
The FPB4 series connector is designed for board-to-board (FPC) connections with a mating height of 0.6mm. It features power contacts capable of carrying 8A, making it suitable for applications requiring high current, such as battery connections. 【Features】 ■ Power contacts capable of carrying 8A ■ Mating height of 0.6mm, product width of 1.95mm ■ Number of pins: 2 signal contacts, 2 power contacts, 2 metal caps ■ Adoption of a metal cap design for a robust structure ■ Metal cap can carry up to 2.5A as a power contact ■ Metal placed in the center of the receptacle connector: enhanced strength through an inner metal armor structure ■ Highly reliable two-point contact structure ■ Improved click feel during mating and increased withdrawal force *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications】 Rated Voltage: AC 30V (r.m.s.) / DC 30V Rated Current: 0.5A Signal Contact 8.0A Power Contact 2.5A Metal Cap Dielectric Strength: AC 200V (r.m.s.) / 1 minute Insulation Resistance: 100 MΩ or more at DC 200V Contact Resistance: 30 mΩ or less for Signal Contact 5 mΩ or less for Power Contact 20 mΩ or less for Metal Cap *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
Please contact us.
